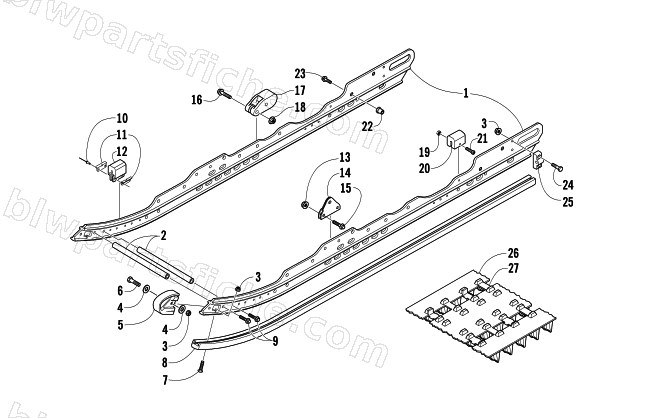

SLIDE RAIL AND TRACK ASSEMBLY
2007 PANTHER 660 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-712 | RAIL,SUSP-136" STAMPED-FORMED | 1 | $288.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 2604-842 | NOSEPIECE,RAIL-TAPERED | 1 | $30.95 | |
| 6 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 1623-502 | SCREW,CAP-HFH 5/16-18X1.25 W/2353 | 1 | $1.78 | |
| 10 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 11 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 12 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 13 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 14 | 0704-395 | BRKT,MTG-FRONT ARM-PTD BLK | 1 | $20.63 | |
| 15 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 16 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 17 | 1604-413 | BLOCK,SPRING TENSION | 1 | $22.01 | |
| 18 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 19 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 20 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 21 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 22 | 2604-562 | BUSHING, STOP-REAR ARM | 1 | $5.51 | |
| 23 | 1623-427 | SCREW,CAP-HFH 3/8-16X1.000 W/2353 | 1 | $1.78 | |
| 24 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 25 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 26 | 2602-003 | TRACK,HACKSAW 136X15X1 | 1 | $1,090.95 | |
| 27 | 1602-907 | CLIP,L | 1 | $15.11 |
