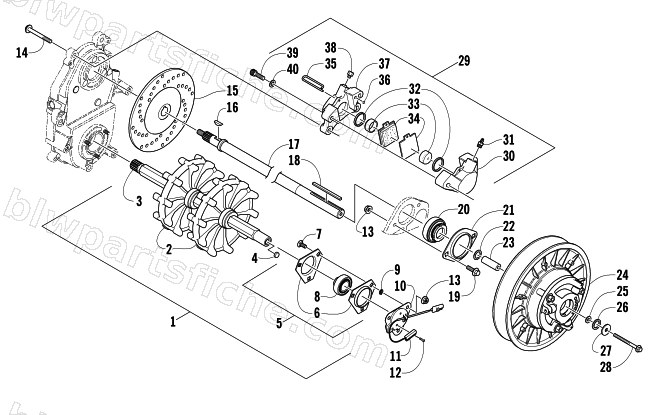

2007 Arctic Cat T660 TOURING — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2007 T660 TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-116 | TRACK/DRIVE-ASSY (TURBO) | 1 | $464.95 | |
| 2 | 1602-507 | SPROCKET, DRIVE 9T 7.15 (.125 GROOVE) | 1 | $57.95 | |
| 3 | 1602-585 | SHAFT,DRIVE-HEX (TURBO) | 1 | $377.95 | |
| 4 | 0630-167 | MAGNET,DISC-.438 | 1 | $15.11 | |
| 5 | 0702-567 | PLATE,FLANGE-BEARING ASSY | 1 | $106.95 | |
| 6 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 7 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 8 | 1602-374 | BEARING,1.00-DRIVE SHAFT | 1 | $136.95 | |
| 9 | 0623-810 | RING,SOLDER-5/16 | 1 | $4.95 | |
| 10 | 3606-244 | BRKT, SPEEDO SENSOR | 1 | $37.95 | |
| 11 | 0630-178 | SENSOR, SPEEDO-ASSY | 1 | $90.95 | |
| 12 | 0623-462 | SCREW,TAPTITE-PHPNH 6-32X1/4 W Z&C | 1 | $0.35 | |
| 13 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 14 | 1623-558 | SCREW, CAP-HFH 7/16-14 X 1.50 W/2353 | 1 | $6.47 | |
| 15 | 1602-205 | DISC, BRAKE-8-5/8 | 1 | $174.95 | |
| 16 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 17 | 0702-810 | SHAFT, DRIVEN-PTD BLK | 1 | $217.95 | |
| 18 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 19 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 21 | 2602-039 | FLANGE, BEARING-2 BOLT-62MM | 1 | $6.06 | |
| 22 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 22 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 23 | 0648-066 | SHAFT, STUB 2.100" | 1 | $28.95 | |
| 24 | 0726-230 | CLUTCH, DRIVEN-LG (49-R/W) | 1 | $1,291.95 | |
| 25 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 26 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 28 | 1623-561 | SCREW,CAP-HFH 5/16-18X0.75 W/204 | 1 | $1.78 | |
| 29 | 0602-829 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $437.95 | |
| 31 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 32 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 33 | 0602-708 | PISTON | 1 | $81.95 | |
| 34 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 | |
| 36 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 38 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 39 | 1623-352 | SCREW,CAP-TXSH 3/8-16 X 2.00 ZINC | 1 | $3.44 | |
| 40 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 |
