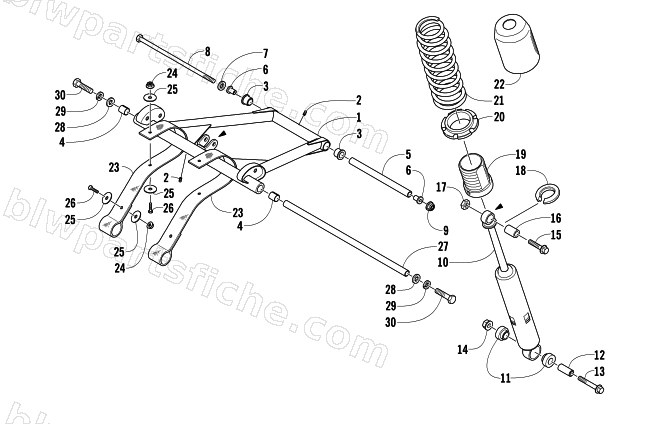

2007 Arctic Cat T660 TURBO TRAIL LE — REAR SUSPENSION FRONT ARM ASSEMBLY
2007 T660 TURBO TRAIL LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-335 | ARM, FRONT-FABR | 1 | $273.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 2604-963 | AXLE,FRONT ARM-INNER-6.630" | 1 | $20.95 | |
| 6 | 2603-497 | BUSHING,FRONT ARM - PWDR METAL | 1 | $2.95 | |
| 7 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 8 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 9 | 8047-490 | NUT,HEX FLG-NY LOCK 3/8-16 GR G Z&Y | 1 | $0.95 | |
| 10 | 1604-369 | SHOCK,FRONT ARM | 1 | $157.95 | |
| 11 | 1604-384 | BUSHING, EYELET - ARVIN SHOCK | 1 | $3.99 | |
| 12 | 1604-329 | AXLE,SHOCK PIVOT-98EXT | 1 | $39.95 | |
| 13 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 14 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 15 | 8020-226 | SCREW,CAP-HFH 3/8-16 X 1.75 Z&Y | 1 | $2.95 | |
| 16 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 17 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 18 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 19 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 20 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 21 | 1704-145 | SPRING,FRT ARM #125-PTD BLK | 1 | $90.95 | |
| 22 | 0604-590 | COVER,SUSPENSION SPRING (LONG) | 1 | $27.95 | |
| 23 | 2604-305 | STRAP, LIMITER-FRONT | 1 | $39.95 | |
| 24 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 25 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 26 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 27 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 28 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 29 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 30 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 |
