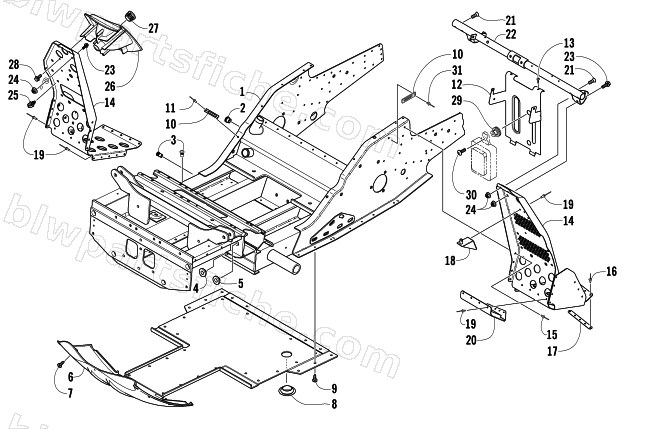

FRONT FRAME AND FOOTREST ASSEMBLY
2007 T660 TURBO TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-821 | CHASSIS,FRT END-04 4STROKE(PTD BLK) ASSY | 1 | $1,291.95 | |
| 2 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 3 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 4 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 6 | 2706-516 | BELLY PAN, CTR-ROUTED | 1 | $164.95 | |
| 7 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 8 | 2606-367 | PLUG, OIL DRAIN ACCESS | 1 | $3.16 | |
| 9 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 10 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 11 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 12 | 0745-215 | BRKT, ECU-PTD BLK | 1 | $78.95 | |
| 13 | 1623-175 | SCREW,SELF TAP-TSTRH 10-24X3/4 TP F Z | 1 | $13.73 | |
| 14 | 2706-919 | FOOTREST-RH-PTD BLK | 1 | $103.95 | |
| 14 | 2706-113 | FOOTREST,W/HOLES-LH-PTD BLK | 1 | $130.95 | |
| 15 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 16 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 17 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 18 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 19 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 20 | 1706-886 | PLATE,BACK-FTREST-RH-BLK(2606-458) | 1 | $19.95 | |
| 20 | 1706-887 | PLATE,BACK-FTREST-LH-BLK(2606-459) | 1 | $19.95 | |
| 21 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 22 | 1705-094 | SUPPORT,STEERING-PTD BLK (TURBO) | 1 | $71.95 | |
| 23 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 24 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 25 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 26 | 1706-099 | CUP,RECOIL ROPE W/REV. & ALARM HOLES | 1 | $37.95 | |
| 27 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 28 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 29 | 0645-359 | MOUNT, ECU | 1 | $24.95 | |
| 30 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 31 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
