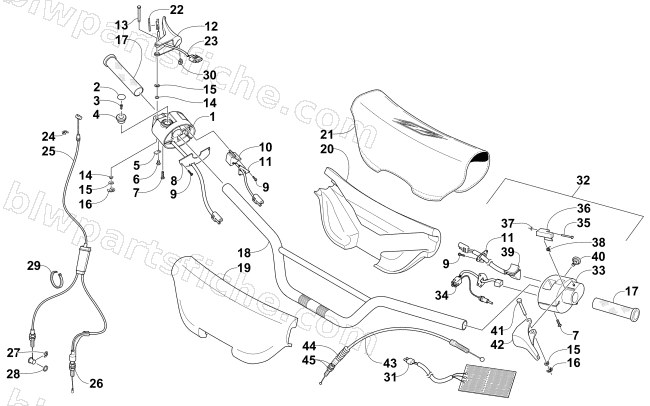

HANDLEBAR AND CONTROLS
2007 Z 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-387 | CONTROL,TH-NO 2W W/ ON/OFF | 1 | $174.95 | |
| 2 | 0609-283 | DECAL,MARK PLATE-N.O. | 1 | $13.95 | |
| 3 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 4 | 0609-282 | KNOB,EMER STOP SW-N.O. | 1 | $15.11 | |
| 6 | 0609-321 | SCREW, SELF-TAP-PH-3X8 | 1 | $2.95 | |
| 7 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 8 | 0609-316 | COVER, SWITCH-THROTTLE | 1 | $12.95 | |
| 9 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 10 | 0609-384 | SWITCH ASSY, ON/OFF TW - TH (RH) | 1 | $74.95 | |
| 11 | 0609-378 | PLATE, SWITCH-H/W&T/W RETAINER | 1 | $11.95 | |
| 12 | 0609-257 | LEVER, TH-32MM SC RED | 1 | $32.95 | |
| 13 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 14 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 15 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 17 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 18 | 0705-360 | HANDLEBAR-PTD BLK | 1 | $61.95 | |
| 21 | 0605-683 | WRAP, HANDLEBAR PAD-Z'S | 1 | $53.95 | |
| 22 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 23 | 0609-685 | ELEMENT, THUMBWARMER-ON/OFF | 1 | $74.95 | |
| 24 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 25 | 0687-084 | CABLE, THROTTLE-VM30 | 1 | $125.95 | |
| 26 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 27 | 0124-057 | E-RING | 1 | $1.64 | |
| 28 | 0124-056 | WASHER | 1 | $13.73 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 31 | 0609-684 | ELEMENT,HW-ON/OFF W/O CAP | 1 | $110.95 | |
| 32 | 0609-393 | CONTROL,BR-MECH W/O LEVER&W/ ON/OFF | 1 | $210.95 | |
| 33 | 0609-478 | CONTROL,BR-MECH HSG W/O LVR (ON/OFF DECA | 1 | $97.95 | |
| 34 | 0609-452 | SWITCH ASS'Y,DIM/BRAKE(MECH)-29.5MM | 1 | $92.95 | |
| 35 | 0609-050 | PIN,RETAINING PARK | 1 | $1.95 | |
| 36 | 0609-314 | ACTUATOR, BRAKE-PARKING | 1 | $15.11 | |
| 37 | 0609-051 | RING,RETAINING PRK | 1 | $1.95 | |
| 38 | 0609-313 | SPRING, BRAKE-PARKING | 1 | $3.16 | |
| 39 | 0609-385 | SWITCH ASSY,ON/OFF HW-BR (LH) | 1 | $70.95 | |
| 40 | 0609-474 | KNOB, DIMMER SWITCH | 1 | $13.73 | |
| 41 | 0609-315 | AXLE, LEVER-BRAKE | 1 | $10.95 | |
| 42 | 0609-266 | LEVER, BRAKE | 1 | $32.95 | |
| 43 | 0687-089 | CABLE,BRAKE-AWS5 | 1 | $73.95 | |
| 44 | 0109-194 | SPRING,BRAKE CBL & THRLE CBL | 1 | $4.95 | |
| 45 | 0123-406 | NUT,FLANGE 5/16-24 | 1 | $0.55 |
