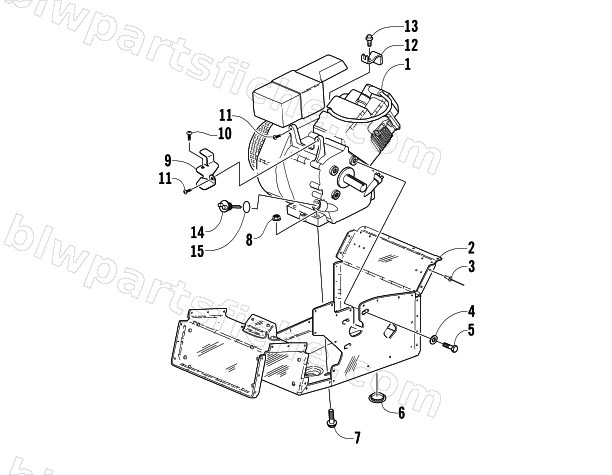

2008 Arctic Cat AC 120 — ENGINE AND RELATED PARTS
2008 AC 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-336 | ENGINE, 120 F/C '03 | 1 | $942.95 | |
| 2 | 3706-775 | FRONT END, PTD BLK-120 | 1 | $382.95 | |
| 3 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 5 | 1623-550 | SCREW, CAP-HH 5/16-24 X .75 W/2353 | 1 | $3.44 | |
| 6 | 0623-822 | PLUG, 1-1/4" | 1 | $1.37 | |
| 7 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 8 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 9 | 4606-028 | COVER, GOVERNOR | 1 | $20.95 | |
| 10 | 0623-786 | SCREW,SELF TAP-TSPNH 10-24X.375 | 1 | $1.78 | |
| 11 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 12 | 0770-617 | BRKT,CHOKE/THROTTLE-PTD BLK | 1 | $45.95 | |
| 13 | 3007-389 | SCREW,ABV VSV | 1 | $3.16 | |
| 14 | 0694-003 | GUAGE ASSY,ENGINE OIL LEVEL | 1 | $29.95 | |
| 15 | 0693-298 | O-RING D:2,4 ID:15.8 | 1 | $4.40 |
