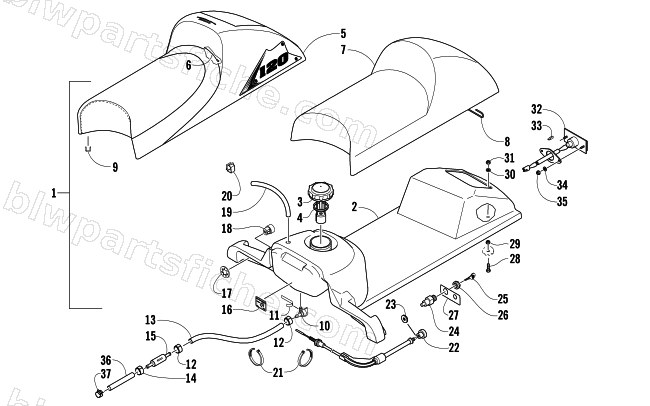

2008 Arctic Cat AC 120 — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2008 AC 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-433 | SEAT,S/P ASSY-GRN | 1 | $632.95 | |
| 1 | 2718-434 | SEAT,S/P ASSY-PINK | 1 | $568.95 | |
| 2 | 1670-969 | TANK, FUEL-120-MULTI LAYER | 1 | $306.95 | |
| 3 | 1670-694 | CAP,GAS-W/GAUGE-06 F 120 | 1 | $42.95 | |
| 5 | 3706-855 | COVER, SEAT-08 120 | 1 | $169.95 | |
| 7 | 1706-017 | FOAM, SEAT(IDL 60-65),48@1.8 | 1 | $102.95 | |
| 8 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 9 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 10 | 0676-017 | VALVE,DRAIN | 1 | $26.95 | |
| 11 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 12 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 13 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 14 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 15 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 16 | 3611-856 | DECAL, FUEL | 1 | $12.35 | |
| 17 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 18 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 19 | 0610-960 | HOSE,VENT-.188X.290X43 | 1 | $15.11 | |
| 20 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 22 | 0687-230 | CABLE,CHOKE-120 | 1 | $45.95 | |
| 23 | 0687-181 | NUT,PLASTIC-CHOKE | 1 | $1.64 | |
| 24 | 0109-822 | SWITCH,IGNITION | 1 | $68.95 | |
| 25 | 0116-065 | KEY,IGNITION | 1 | $8.21 | |
| 26 | 0609-111 | NUT,RETAINING-5/8-32UN2B BLK PLASTIC | 1 | $6.47 | |
| 27 | 4611-767 | DECAL,SWITCH/CHOKE-ZR 120 | 1 | $12.95 | |
| 28 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 29 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 30 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 32 | 0609-070 | TAILLIGHT,KITTY CAT | 1 | $54.95 | |
| 33 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 34 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 35 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 36 | 0610-772 | HOSE,GASOLINE-25' | 1 | $252.95 | |
| 37 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 |
