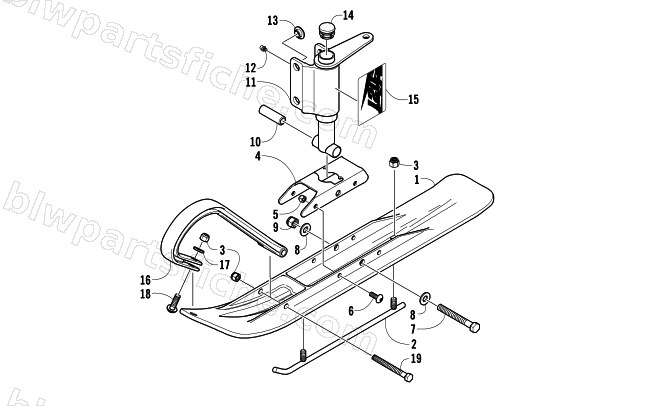

2008 Arctic Cat AC 120 — SKI AND SPINDLE ASSEMBLY
2008 AC 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-593 | SKI, INJECTION MOLDED-BLACK | 1 | $82.95 | |
| 2 | 0703-698 | SKAG-PTD BLK | 1 | $19.25 | |
| 3 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 4 | 1703-649 | SADDLE, SKI-PTD PLATINUM-ZR 120 | 1 | $58.95 | |
| 5 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 6 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 8 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 9 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 10 | 1603-365 | AXLE, SUSPENSION | 1 | $4.26 | |
| 11 | 1703-864 | SPINDLE ASSY-MFG ASSY-F120 | 1 | $145.95 | |
| 12 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 13 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 14 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 15 | 7611-944 | DECAL, SPINDLE-RH-08 120 GRN | 1 | $31.95 | |
| 15 | 7611-945 | DECAL, SPINDLE-LH-08 120 GRN | 1 | $31.95 | |
| 15 | 8611-130 | DECAL, SPINDLE, RH-08 120 | 1 | $31.95 | |
| 15 | 8611-131 | DECAL, SPINDLE, LH-08 120 | 1 | $31.95 | |
| 16 | 1603-594 | HANDLE, SKI-MOLDED BLACK | 1 | $20.63 | |
| 17 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 18 | 8017-672 | SCREW,MACH-TSTRH 5/16-18 X 1.00 GR2 Z&Y | 1 | $4.68 | |
| 19 | 8002-141 | SCREW,CAP-HH 5/16-18 X3.00-G5 Z&Y | 1 | $1.23 |
