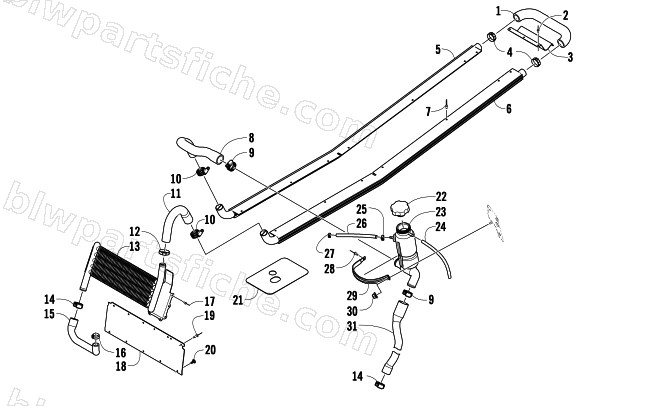

2008 Arctic Cat AC 600 SNO PRO — COOLING ASSEMBLY
2008 AC 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0610-361 | HOSE,COOLANT-REAR ('U'-SHAPED) | 1 | $59.95 | |
| 2 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 3 | 0616-810 | GUARD,COOLANT HOSE | 1 | $20.95 | |
| 4 | 1623-187 | CLAMP,HOSE-34/9 SS | 1 | $5.09 | |
| 5 | 5606-538 | EXCHANGER,HEAT-FORMED RH | 1 | $107.95 | |
| 6 | 5606-539 | EXCHANGER,HEAT-FORMED LH | 1 | $107.95 | |
| 7 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 8 | 0610-780 | HOSE,COOLANT-RH EXCH/COOLANT TANK | 1 | $53.95 | |
| 9 | 1623-092 | CLAMP,BAND-SAE #16 | 1 | $5.09 | |
| 10 | 1623-230 | CLAMP,SCREW-#016 | 1 | $12.35 | |
| 11 | 0610-781 | HOSE,COOLANT-LH EXCH/FIN PLATE EXCH | 1 | $43.95 | |
| 12 | 1623-515 | CLAMP,HOSE-29.9MM TO 33.1MM | 1 | $4.40 | |
| 13 | 5606-857 | EXCHANGER,HEAT-FIN PLATE | 1 | $259.95 | |
| 14 | 1623-229 | CLAMP,SCREW-#012 | 1 | $3.85 | |
| 15 | 0610-782 | HOSE,COOLANT-ENG/HEAT EXCH | 1 | $42.95 | |
| 16 | 1623-418 | CLAMP,HOSE-21/SS | 1 | $5.51 | |
| 17 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 18 | 5606-399 | PANEL,HEAT EXCHANGER-CLOSEOFF | 1 | $9.95 | |
| 19 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 20 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 21 | 5606-671 | SEAL,RUBBER-COOLANT HOSE | 1 | $24.95 | |
| 22 | 4606-209 | CAP,COOLANT BOTTLE (W/THREADS) | 1 | $26.95 | |
| 23 | 3706-684 | TANK,COOLANT-W/FITTING | 1 | $180.95 | |
| 24 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 25 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 26 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 27 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 28 | 8061-682 | RIVET,BLIND-LF SD62BSLF ZINC | 1 | $0.95 | |
| 29 | 0623-761 | CLAMP,COOLANT TANK | 1 | $6.89 | |
| 30 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 31 | 0610-762 | HOSE,COOLANT-TANK/THERMOSTAT | 1 | $43.95 |
