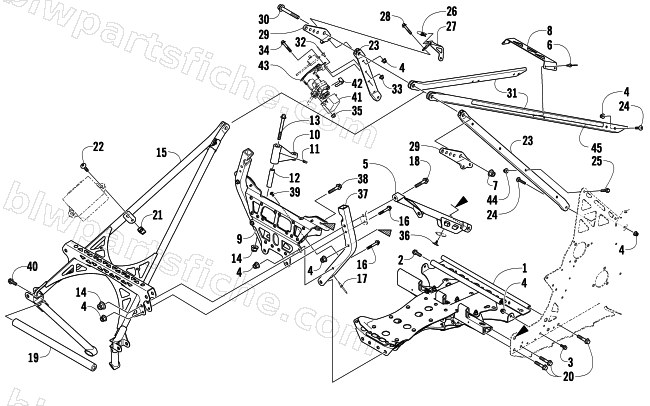

2008 Arctic Cat AC 600 SNO PRO — FRONT FRAME AND STEERING SUPPORT ASSEMBLY
2008 AC 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-464 | GUSSET,LWR ARM-SPR | 1 | $583.95 | |
| 2 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 3 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 4706-082 | BRACE,DIAGONAL-PTD BLK-RH | 1 | $105.95 | |
| 5 | 4706-083 | BRACE,DIAGIONAL-PTD BLK-LH | 1 | $108.95 | |
| 6 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 7 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 8 | 5606-616 | BRACE,SUPPORT-SPAR | 1 | $33.95 | |
| 9 | 1707-164 | BULKHEAD,STEERING-FABR | 1 | $236.95 | |
| 10 | 1707-172 | BELLCRANK,STEERING-FABR | 1 | $70.95 | |
| 11 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 12 | 2603-436 | AXLE,BELL CRANK | 1 | $9.59 | |
| 13 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 | |
| 14 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 15 | 4706-051 | SPAR,UPPER-PTD BLK | 1 | $402.95 | |
| 16 | 8408-640 | SCREW,CAP-HFH M6X1.0X40 CL8.8 Z&Y | 1 | $1.50 | |
| 17 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 18 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 19 | 4706-413 | CROSSBRACE,FRONT ARM-MACH | 1 | $31.95 | |
| 20 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 21 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 22 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 23 | 4706-096 | SPAR,MIDDLE-MACH RH | 1 | $41.95 | |
| 23 | 4706-097 | SPAR,MIDDLE-MACH LH | 1 | $41.95 | |
| 24 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 25 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 26 | 1623-052 | NUT,U | 1 | $0.95 | |
| 27 | 5606-396 | BRKT,MTG-CONSOLE | 1 | $24.77 | |
| 28 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 29 | 0605-962 | BRKT,STEERING-RH | 1 | $42.95 | |
| 29 | 0605-963 | BRKT,STEERING-LH | 1 | $42.95 | |
| 30 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 31 | 4706-098 | SPAR,REAR-MACH RH | 1 | $42.95 | |
| 31 | 4706-099 | SPAR,REAR-MACH LH | 1 | $42.95 | |
| 32 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 33 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 34 | 8408-530 | SCREW,CAP-HFH M5X0.8X30 CL8.8Z&Y | 1 | $0.95 | |
| 35 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 36 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 37 | 0607-930 | TUBE,BULKHEAD-RH | 1 | $69.95 | |
| 37 | 0607-931 | TUBE,BULKHEAD-LH | 1 | $69.95 | |
| 38 | 8408-645 | SCREW,CAP-HFH M6X1.0X45 CL8.8 Z&Y | 1 | $1.50 | |
| 39 | 1623-463 | SCREW,PT THREAD FORMING-K60-2.69X12mm | 1 | $1.78 | |
| 40 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 42 | 5606-208 | CLIP,SERVO MOTOR | 1 | $29.95 | |
| 43 | 2706-814 | PLATE,MTG-SERVO MOTOR-ASSY | 1 | $32.95 | |
| 44 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 45 | 6990-283 | VELCRO,HOOK-SELF LOCK W/ADH-1"X80" | 1 | $78.95 |
