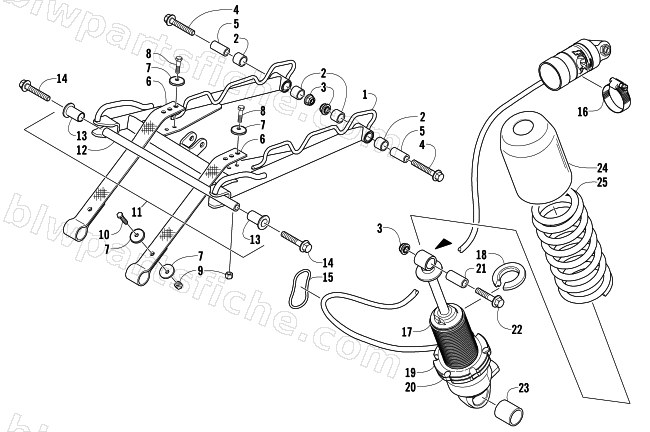

2008 Arctic Cat AC 600 SNO PRO — REAR SUSPENSION FRONT ARM ASSEMBLY
2008 AC 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-703 | ARM,FRONT-FABR | 1 | $415.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 3604-390 | STRAP,LIMITER-1.25" X 17.28" | 1 | $39.95 | |
| 7 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 8 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 11 | 1704-709 | AXLE,FRT ARM ASSY-W/BUSHINGS | 1 | $264.95 | |
| 12 | 3604-377 | AXLE,FRONT ARM | 1 | $48.95 | |
| 13 | 2604-930 | BUSHING,AXLE | 1 | $31.95 | |
| 14 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 | |
| 15 | 1604-935 | SUPPORT, HOSE -REAR ARM (O-RING) | 1 | $4.26 | |
| 16 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 17 | 1704-732 | SHOCK,FRT ARM | 1 | $1,304.95 | |
| 18 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 19 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 21 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 22 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 23 | 2604-407 | BUSHING,SHOCK-1.015 X .800 | 1 | $19.25 | |
| 24 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 |
