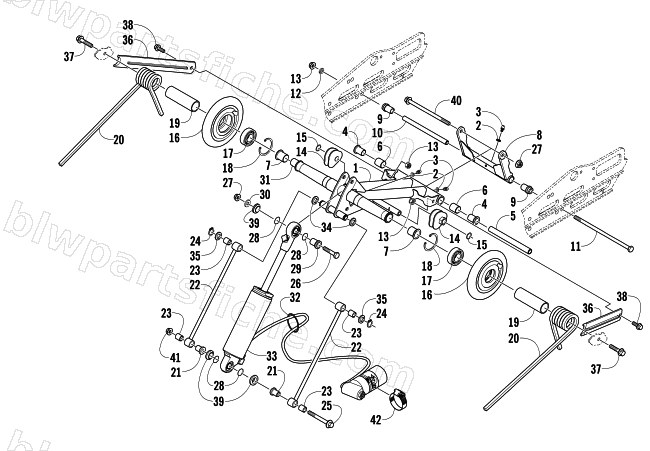

2008 Arctic Cat AC 600 SNO PRO — REAR SUSPENSION REAR ARM ASSEMBLY
2008 AC 600 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-706 | ARM,IDLER-FABR | 1 | $480.95 | |
| 2 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 3 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 4 | 3604-222 | BUSHING,AXLE | 1 | $34.95 | |
| 5 | 3604-226 | AXLE,ALUM-.622 X 6.817 | 1 | $73.95 | |
| 6 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 7 | 3604-223 | BEARING,FLANGED-PLASTIC | 1 | $15.11 | |
| 8 | 1704-368 | ARM,REAR-FABR | 1 | $108.95 | |
| 9 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 10 | 2604-665 | TUBE,AXLE-REAR ARM | 1 | $29.95 | |
| 11 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 12 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 14 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 15 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 16 | 3604-230 | WHEEL,IDL-6.38(NO INSR)W/HOLE | 1 | $110.95 | |
| 17 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 18 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 19 | 3604-414 | SLEEVE,SPRING-4.50" | 1 | $9.59 | |
| 20 | 1704-382 | SPRING,SUSPENSION-RH LIGHT-PTD BLK | 1 | $145.95 | |
| 20 | 1704-383 | SPRING,SUSPENSION-LH LIGHT-PTD BLK | 1 | $145.95 | |
| 20 | 1704-384 | SPRING,SUSPENSION-RH HEAVY-PTD BLK | 1 | $144.95 | |
| 20 | 1704-385 | SPRING,SUSPENSION-LH HEAVY-PTD BLK | 1 | $144.95 | |
| 21 | 3604-209 | AXLE, LINK-FLANGED | 1 | $15.11 | |
| 22 | 1704-377 | LINK,REAR SHOCK-FABR | 1 | $53.95 | |
| 23 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 24 | 0623-237 | SNAP RING,EXTL-5/8 DIA | 1 | $1.92 | |
| 25 | 8026-414 | SCREW,CAP-HFH 1/2-13 X 4 GR8 Z&Y | 1 | $5.65 | |
| 26 | 1623-120 | SCREW,CAP-HH 3/8-16X1.94 GR 5 Z&Y | 1 | $13.73 | |
| 27 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 28 | 2604-698 | O-RING,5/8ID X 7/8OD | 1 | $0.40 | |
| 29 | 3604-127 | SPACER,SPHERICAL BEARING | 1 | $51.95 | |
| 30 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 31 | 3604-388 | AXLE,ALUM-INNER CARRIAGE-.749X15.362 | 1 | $77.95 | |
| 32 | 1604-935 | SUPPORT, HOSE -REAR ARM (O-RING) | 1 | $4.26 | |
| 33 | 1704-733 | SHOCK,REAR ARM | 1 | $1,511.95 | |
| 34 | 1623-384 | WASHER,URETHANE-.180X1.00X.165 | 1 | $12.35 | |
| 35 | 1623-389 | WASHER,FLAT-.641 X .900 X .060 Z&Y | 1 | $1.37 | |
| 36 | 3604-408 | BRACE,SUPPORT-IDLER ARM-MACH | 1 | $36.95 | |
| 37 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 | |
| 38 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 39 | 3604-210 | SPACER, BEARING-.500 ID | 1 | $6.75 | |
| 40 | 1623-674 | SCREW,CAP-HH 3/8-16X7.8 GR 5 Z&Y | 1 | $20.63 | |
| 41 | 8047-610 | NUT,HEX FLG-NY LOCK 1/2-13 GR G Z&Y | 1 | $2.75 | |
| 42 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 |
