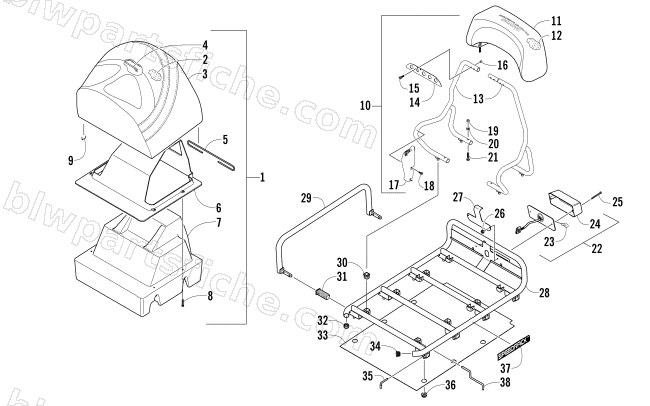

2008 Arctic Cat BEARCAT WIDE TRACK TURBO — REAR SEAT, BACKREST, AND RACK ASSEMBLY
2008 BEARCAT WIDE TRACK TURBO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0644-409 | KIT, TOOL-04 4-STROKE | 1 | $50.95 | |
| 1 | 7999-887 | SEAT, PASS-MFG ASSY-08 BCWT | 1 | $450.95 | |
| 2 | 2706-921 | FOAM,SEAT-PASS-'06 2 UP (70-75 ILD) | 1 | $115.95 | |
| 3 | 3706-724 | COVER, SEAT-PASS-08 BCWT | 1 | $196.95 | |
| 5 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 6 | 4606-123 | TOP, SEAT BASE, REAR-06 BCWT | 1 | $41.95 | |
| 7 | 4606-634 | SEATBASE, REAR-07 BCWT | 1 | $150.95 | |
| 8 | 0623-783 | SCREW, ST-PAN HD-12 X 1 1/2-TYPE A Z&Y | 1 | $0.95 | |
| 9 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 10 | 3706-809 | BACKREST, MFG ASSY-08 BCWT | 1 | $627.95 | |
| 11 | 3706-721 | COVER, BACKREST-08 BCWT | 1 | $164.95 | |
| 12 | 0716-705 | FOAM,BACKREST(IDL N/A),44@1.8 | 1 | $85.95 | |
| 13 | 3706-550 | BACKREST, RH-PTD BLK-07 BCWT | 1 | $156.95 | |
| 13 | 3706-551 | BACKREST, LH-PTD BLK-07 BCWT | 1 | $160.95 | |
| 14 | 3706-546 | SUPPORT, CROSS-BACKREST-PTD BLK | 1 | $13.95 | |
| 15 | 8020-045 | SCREW,CAP-HFH 1/4-20 X 1.500 Z&Y | 1 | $0.95 | |
| 16 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 17 | 1606-238 | DEFLECTOR,WIND-RH | 1 | $56.95 | |
| 17 | 1606-239 | DEFLECTOR,WIND-LH | 1 | $56.95 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 22 | 0609-708 | TAILLIGHT - ASSY W/HARNESS | 1 | $90.95 | |
| 23 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 24 | 0609-229 | LENS,TAILLIGHT | 1 | $32.95 | |
| 25 | 1623-148 | SCREW,MACH-TSBH 10-32X2.125 GR8 Z&Y | 1 | $12.35 | |
| 26 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 27 | 3706-091 | GUARD, TAILLIGHT-PTD BLK-BCWT | 1 | $18.95 | |
| 28 | 3706-525 | RACK, MRP,BCWT-PTD BLK | 1 | $291.95 | |
| 29 | 2706-959 | RACK, SIDE-PAINTED | 1 | $51.95 | |
| 30 | 0441-592 | BUSHING,RACK FRAME | 1 | $4.26 | |
| 31 | 2406-014 | BUSHING,RACK FRAME | 1 | $2.47 | |
| 32 | 4606-113 | PLUG, RACK | 1 | $2.95 | |
| 33 | 4606-377 | MAT, RACK-RUBBER-HT | 1 | $44.95 | |
| 34 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 35 | 0541-447 | PINS,SPEEDRACK-SS-ASSY | 1 | $16.49 | |
| 36 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 37 | 0411-965 | DECAL,"SPEEDRACK"(MRP) | 1 | $3.30 | |
| 38 | 1623-422 | PIN/CAP-BCWT | 1 | $23.39 |
