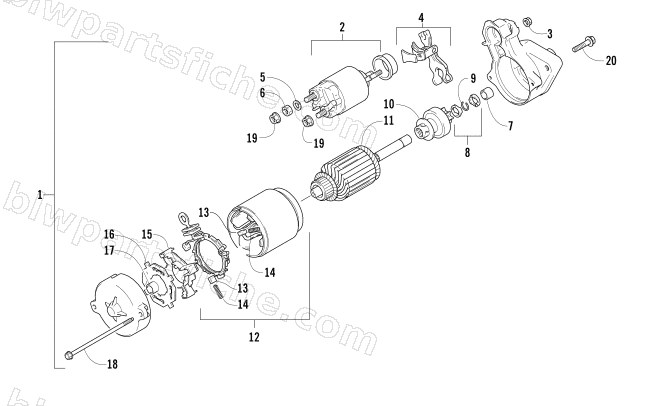

STARTER MOTOR ASSEMBLY
2008 BEARCAT WIDE TRACK TURBO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-400 | MOTOR ASSY,STARTING | 1 | $1,280.95 | |
| 2 | 3006-255 | SWITCH ASSY,02 660 L/C | 1 | $544.95 | |
| 3 | 3007-373 | NUT | 1 | $3.16 | |
| 4 | 3006-254 | LEVER,PINION DRIVE 02 660 L/C | 1 | $77.95 | |
| 5 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 6 | 3007-416 | NUT | 1 | $2.75 | |
| 7 | 3007-592 | BEARING | 1 | $59.95 | |
| 8 | 3006-257 | NUT COMP,PINION STOP '02 660 L/C | 1 | $27.95 | |
| 10 | 3006-260 | PINION ASSEMBLY,02 660 L/C | 1 | $373.95 | |
| 11 | 3006-258 | ARMATURE,02 660 L/C | 1 | $993.95 | |
| 12 | 3007-591 | YOKE ASSY | 1 | $511.95 | |
| 14 | 3006-248 | SPRING,BRUSH 02 660 L/C | 1 | $17.87 | |
| 15 | 3006-252 | HOLDER,BRUSH 02 660 L/C | 1 | $163.95 | |
| 16 | 3006-253 | INSULATOR,02 660 L/C | 1 | $16.49 | |
| 17 | 3006-251 | BUSH,02 660 L/C | 1 | $28.95 | |
| 18 | 3006-256 | BOLT,02 660 L/C | 1 | $23.39 | |
| 19 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 20 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 |
