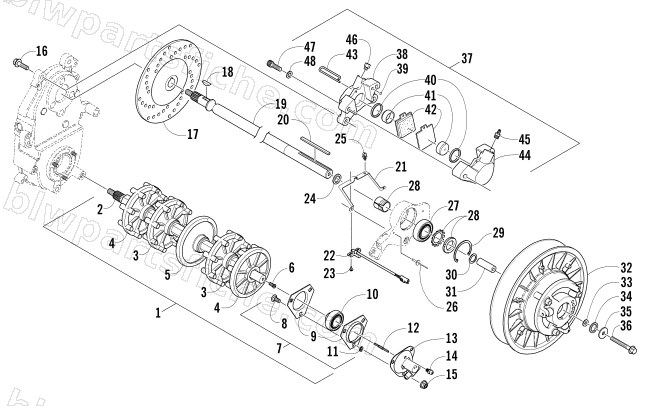

2008 Arctic Cat BEARCAT WIDE TRACK — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2008 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-154 | TRACK DRIVE, MFG ASSY-06 BCWT | 1 | $524.95 | |
| 2 | 1602-820 | SHAFT, DRIVE-HEX | 1 | $342.95 | |
| 3 | 1602-574 | SPROCKET,DRIVE-9T | 1 | $73.95 | |
| 4 | 1602-854 | SPROCKET,DRIVE-9T OUTER-7.150 | 1 | $57.95 | |
| 5 | 1602-878 | SPROCKET, IDLER-CTR-BLACK | 1 | $45.95 | |
| 6 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 7 | 0702-567 | PLATE,FLANGE-BEARING ASSY | 1 | $106.95 | |
| 8 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 9 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 10 | 1602-374 | BEARING,1.00-DRIVE SHAFT | 1 | $136.95 | |
| 11 | 0623-810 | RING,SOLDER-5/16 | 1 | $4.95 | |
| 12 | 0602-154 | CABLE,DRIVE ADAPTOR | 1 | $12.35 | |
| 13 | 0720-005 | ADAPTER,DRIVE-SPEEDOMETER-FAB. 47 | 1 | $96.95 | |
| 14 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 15 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 16 | 1623-558 | SCREW, CAP-HFH 7/16-14 X 1.50 W/2353 | 1 | $6.47 | |
| 17 | 1602-205 | DISC, BRAKE-8-5/8 | 1 | $174.95 | |
| 18 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 19 | 0702-362 | SHAFT,DRIVEN-PTD BLK | 1 | $235.95 | |
| 20 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 21 | 3706-630 | BRKT, SPEED SENSOR-PTD BLK-07 BCWT | 1 | $25.95 | |
| 22 | 0630-008 | SWITCH,MAGNETIC CARB ASSY | 1 | $63.95 | |
| 23 | 0623-137 | SCREW,TAPTITE-HWH 6-32X.313 Z&Y | 1 | $0.32 | |
| 24 | 1602-396 | MAGNET, COLLAR - 1.00 ID X 1.50 OD | 1 | $8.95 | |
| 25 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 26 | 8060-490 | RIVET,BLIND-DH SS58 ZINC | 1 | $0.95 | |
| 27 | 1602-986 | BEARING,DRIVEN SHAFT-1" W/SLEEVE-SKF | 1 | $65.95 | |
| 28 | 2602-054 | SLEEVE, ADAPTER W/NUT | 1 | $66.95 | |
| 29 | 2602-038 | RING, INTERNAL, RETAINING-62MM | 1 | $15.11 | |
| 30 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 30 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 31 | 0648-066 | SHAFT, STUB 2.100" | 1 | $28.95 | |
| 32 | 0726-230 | CLUTCH, DRIVEN-LG (49-R/W) | 1 | $1,291.95 | |
| 33 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 34 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 36 | 8020-142 | SCREW,CAP-HFH 5/16-18 X 3.25 G5 Z&Y | 1 | $3.95 | |
| 37 | 0602-829 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $437.95 | |
| 39 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 40 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 41 | 0602-708 | PISTON | 1 | $81.95 | |
| 42 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 | |
| 45 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 46 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 47 | 1623-352 | SCREW,CAP-TXSH 3/8-16 X 2.00 ZINC | 1 | $3.44 | |
| 48 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 |
