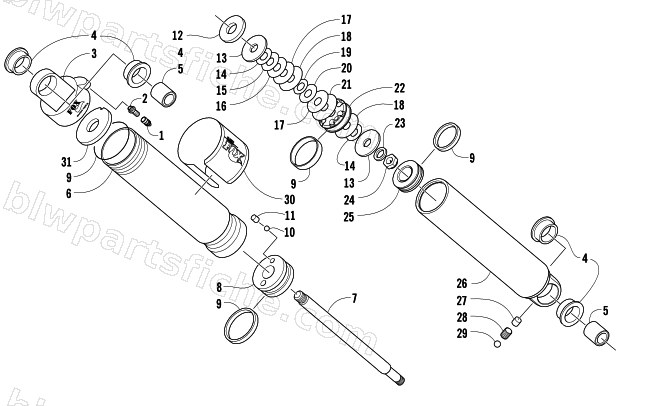

2008 Arctic Cat CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION — FRONT SUSPENSION SHOCK ABSORBER
2008 CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 | |
| 0 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 3 | 2603-418 | CAP,AIR SLEEVE-FLOAT ASSY | 1 | $181.95 | |
| 4 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 5 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 6 | 2603-411 | SLEEVE,AIR-ASSY-8.915"-(FLOAT) | 1 | $332.95 | |
| 7 | 2603-415 | SHAFT,SHOCK-.498 X 9.250" | 1 | $151.95 | |
| 8 | 2603-333 | BEARING,ENDCAP- ASSY- 1.750 OD - (FLOAT) | 1 | $153.95 | |
| 9 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 13 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 14 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 15 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 16 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 17 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 18 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 19 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 20 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 21 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 22 | 2603-309 | PISTON,DAMPING-1.459 BORE-.093 ORIFICE | 1 | $34.95 | |
| 23 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 24 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 25 | 2603-417 | PISTON,IFP FLOAT-ASSY | 1 | $44.95 | |
| 26 | 2603-413 | BODY,FLOAT SHOCK-9.425" | 1 | $259.95 | |
| 27 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 28 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 29 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 30 | 2603-610 | DECAL,FOX FLOAT-2006 | 1 | $38.95 | |
| 31 | 2603-613 | SPACER,AIR VOLUME REDUCER-.1875" | 1 | $16.95 |
