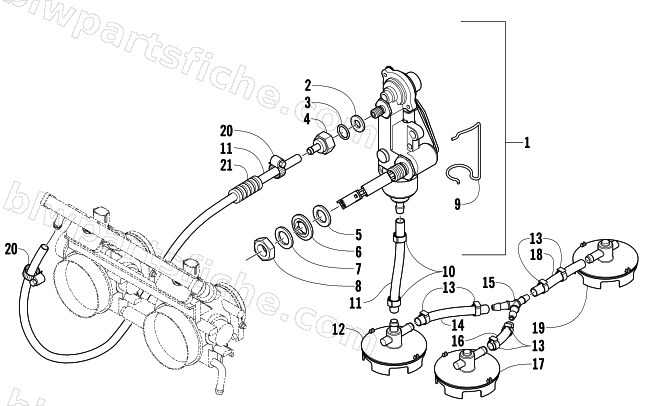

2008 Arctic Cat CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION — FUEL PUMP ASSEMBLY
2008 CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-851 | PUMP,FUEL-PFA-32C- 2 AMP/300KPA | 1 | $1,068.95 | |
| 2 | 1670-535 | GROMMET,OUTLET SEAL | 1 | $10.97 | |
| 3 | 1670-476 | O-RING | 1 | $8.21 | |
| 4 | 1670-475 | FITTING | 1 | $50.95 | |
| 5 | 1670-534 | GROMMET,MTG SEAL | 1 | $6.89 | |
| 6 | 1670-479 | WASHER | 1 | $15.11 | |
| 7 | 1670-478 | WASHER | 1 | $1.78 | |
| 8 | 1670-477 | NUT,HEX - M16 X 2.0 Z&C | 1 | $0.95 | |
| 9 | 1670-579 | WIRE RETAINER, FUEL PUMP | 1 | $29.95 | |
| 10 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 11 | 0610-971 | HOSE,FUEL-IN TANK-10 FT | 1 | $267.95 | |
| 12 | 1670-701 | PICKUP,FUEL-(MP16)TOP BARB | 1 | $93.95 | |
| 13 | 1670-706 | CLAMP,HOSE- CRIMP (.383 OPEN) | 1 | $3.71 | |
| 14 | 1670-695 | PICKUP,FUEL-3 MP-ASSY | 1 | $444.95 | |
| 15 | 1670-705 | FITTING,Y-PLASTIC | 1 | $24.77 | |
| 17 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 19 | 1670-618 | PICKUP,FUEL-SMALL/MP-13 VENT | 1 | $93.95 | |
| 20 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 21 | 0716-507 | LOOM,HI-TEMP (26" LONG) | 1 | $3.44 |
