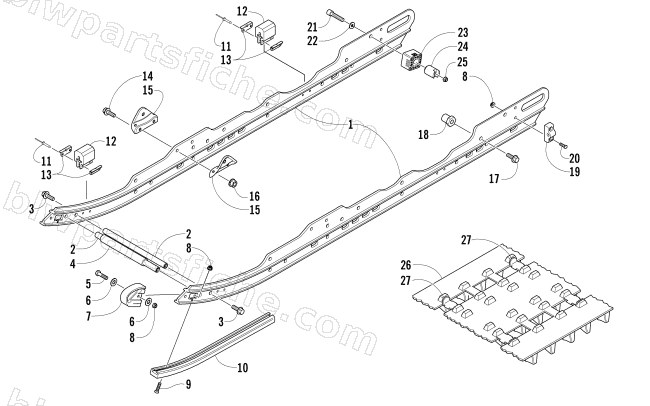

2008 Arctic Cat CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION — SLIDE RAILS AND TRACK ASSEMBLY
2008 CROSSFIRE 1000 EFI SNO PRO LIMITED EDITION
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7999-987 | SUSPENSION,REAR-NF SP BLK-MFG ASSY | 1 | $2,391.95 | |
| 1 | 1704-712 | RAIL,FORMED-136"-PTD BLK | 1 | $291.95 | |
| 2 | 0704-501 | AXLE,ALUM.-BLK | 1 | $40.95 | |
| 3 | 1623-248 | SCREW,CAP-HFH 3/8-16X1.125 W/2353 | 1 | $4.40 | |
| 4 | 1704-077 | SPACER,ALUM-PTD BLK | 1 | $13.95 | |
| 5 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 2604-842 | NOSEPIECE,RAIL-TAPERED | 1 | $30.95 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 13 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 14 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 15 | 2604-593 | BRACKET,MTG-FRONT ARM-ZINC | 1 | $22.01 | |
| 16 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 17 | 1623-427 | SCREW,CAP-HFH 3/8-16X1.000 W/2353 | 1 | $1.78 | |
| 18 | 2604-562 | BUSHING, STOP-REAR ARM | 1 | $5.51 | |
| 19 | 0704-503 | ADJUSTER,TRACK-BLK | 1 | $26.95 | |
| 20 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 21 | 8005-676 | SCREW, CAP-HSH 3/8-16X1.75 Z&Y | 1 | $1.95 | |
| 22 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 23 | 2604-860 | BLOCK,REAR ARM COUPLER-LARGE | 1 | $16.49 | |
| 24 | 2604-046 | BUSHING, REAR ARM COUPLER | 1 | $29.95 | |
| 25 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 26 | 1602-997 | TRACK,15X136X1.25 | 1 | $1,059.95 | |
| 27 | 2602-384 | CLIP,WEAR | 1 | $3.57 |
