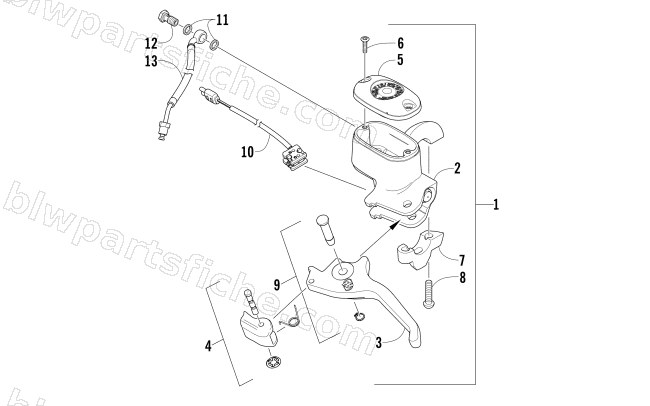

2008 Arctic Cat CROSSFIRE 1000 EFI SNO PRO — HYDRAULIC BRAKE CONTROL ASSEMBLY
2008 CROSSFIRE 1000 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1602-930 | 1/2" FULL ASSEMBLY-BRAKE | 1 | $333.95 | |
| 2 | 1602-929 | 1/2" PISTON SUB-ASSY W/ RESERVOIR BODY | 1 | $333.95 | |
| 3 | 1602-931 | LEVER & PARK LEVER SUB-ASSY | 1 | $120.95 | |
| 5 | 1602-933 | RESERVOIR COVER SUB-ASSYW/GASKET | 1 | $128.95 | |
| 6 | 1602-934 | RESERVOIR COVER SCREWS | 1 | $20.63 | |
| 7 | 1602-935 | CLAMP-BRAKE | 1 | $41.95 | |
| 8 | 1602-936 | CLAMP SCREWS-BRAKE | 1 | $19.25 | |
| 9 | 1602-937 | PIVOT PIN & SNAP RING-BRAKE | 1 | $49.95 | |
| 10 | 1602-938 | BRAKE LIGHT SWITCH | 1 | $84.95 | |
| 11 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 12 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 13 | 1602-926 | HOSE,BRAKELINE-BRAIDED-35" | 1 | $91.95 |
