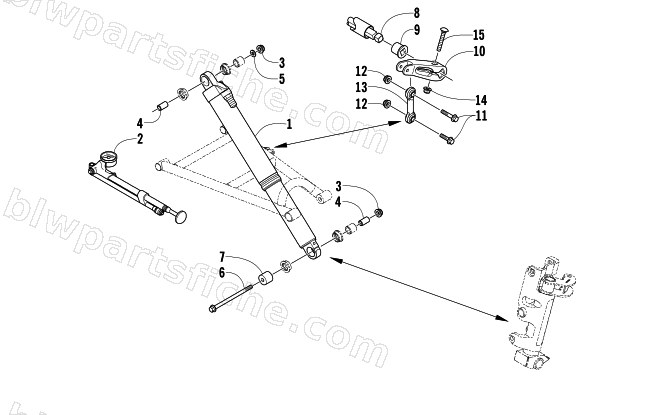

2008 Arctic Cat CROSSFIRE 1000 EFI SNO PRO — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2008 CROSSFIRE 1000 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-138 | SHOCK,SKI-FLOAT 18.80"-ASSY | 1 | $744.95 | |
| 2 | 2603-614 | PUMP,FOX HP W/BLEED-150 PSI (FLOAT2) | 1 | $69.95 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 5 | 0623-991 | WSHR, FLAT ALUM-.390 X 1.125 X .125 | 1 | $1.95 | |
| 6 | 8020-232 | SCREW,CAP-HFH 3/8-16 X 3.25 Z&Y | 1 | $5.65 | |
| 7 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 8 | 2703-094 | SWAY BAR,7/16 DIA X 21.21"-PTD BLK | 1 | $112.95 | |
| 9 | 2603-648 | BEARING,SWAY BAR-HIGH TEMP | 1 | $13.73 | |
| 10 | 2703-096 | ARM,SWAYBAR 3.3"-PTD BLK | 1 | $76.95 | |
| 11 | 8020-045 | SCREW,CAP-HFH 1/4-20 X 1.500 Z&Y | 1 | $0.95 | |
| 12 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 13 | 2603-649 | LINK,SWAY BAR-2.00" | 1 | $57.95 | |
| 14 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 15 | 1623-584 | BOLT,CRG 5/16-18 X 2.0 GR5 Z&Y | 1 | $1.23 |
