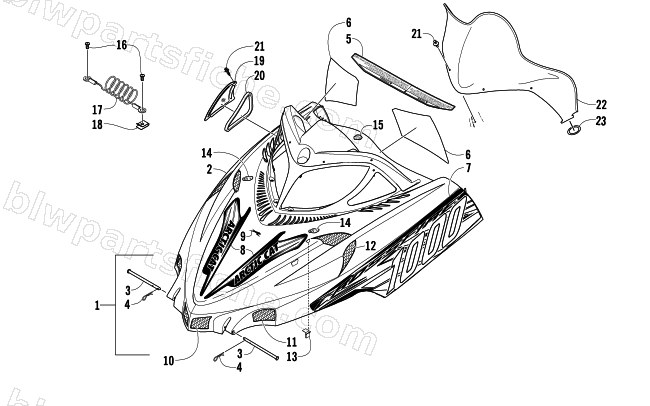

HOOD AND WINDSHIELD ASSEMBLY
2008 CROSSFIRE 1000 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-265 | HOOD W/DECALS-BLK (CF 1000) | 1 | $1,166.95 | |
| 2 | 2718-146 | HOOD W/O DECALS - BLK (M SERIES) | 1 | $1,012.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 6611-143 | DECAL,CAUTION-HOOD | 1 | $15.11 | |
| 6 | 6611-144 | DECAL,WARNING-HOOD-ENGLISH | 1 | $27.95 | |
| 6 | 6611-145 | DECAL,WARNING-HOOD-FRENCH | 1 | $15.11 | |
| 7 | 8611-170 | DECAL,HOOD-"CROSSFIRE 1000"-LWR RH (BLK) | 1 | $221.95 | |
| 7 | 8611-171 | DECAL,HOOD-"CROSSFIRE 1000"-LWR LH (BLK) | 1 | $221.95 | |
| 8 | 8611-156 | DECAL,HOOD-UPPER RH (BLK) | 1 | $174.95 | |
| 8 | 8611-157 | DECAL,HOOD-UPPER LH (BLK) | 1 | $88.95 | |
| 9 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 10 | 2706-793 | SCREEN,VENT-HOOD-FRT CENTER-PTD BLK | 1 | $33.95 | |
| 11 | 3706-260 | SCREEN,VENT-HOOD-FRT R/H-PTD BLK | 1 | $58.95 | |
| 11 | 3706-261 | SCREEN,VENT-HOOD-FRT L/H-PTD BLK | 1 | $58.95 | |
| 12 | 2706-796 | SCREEN,VENT-HOOD-REAR R/H-PTD BLK | 1 | $43.95 | |
| 12 | 2706-797 | SCREEN,VENT-HOOD-REAR L/H-PTD BLK | 1 | $33.95 | |
| 13 | 1623-694 | CLIP,RETAINING-HOOD LINER | 1 | $0.26 | |
| 14 | 0617-510 | FOAM,ACOUSTICAL-HOOD-RH | 1 | $109.95 | |
| 14 | 0617-545 | FOAM,ACOUSTICAL-HOOD-LH | 1 | $112.95 | |
| 15 | 0617-489 | FOAM,HOOD/CONSOLE | 1 | $19.25 | |
| 16 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 17 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 18 | 1623-052 | NUT,U | 1 | $0.95 | |
| 19 | 4706-180 | BEZEL,INTAKE-S/P ASSY-RH | 1 | $42.95 | |
| 19 | 4706-181 | BEZEL,INTAKE-S/P ASSY-LH | 1 | $42.95 | |
| 20 | 0617-486 | FOAM,INTAKE BEZEL-RH | 1 | $15.11 | |
| 20 | 0617-487 | FOAM,INTAKE BEZEL-LH | 1 | $15.11 | |
| 21 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 22 | 4606-117 | WINDSHIELD,MED-TINT-FORMED (M-SERIES) | 1 | $217.95 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
