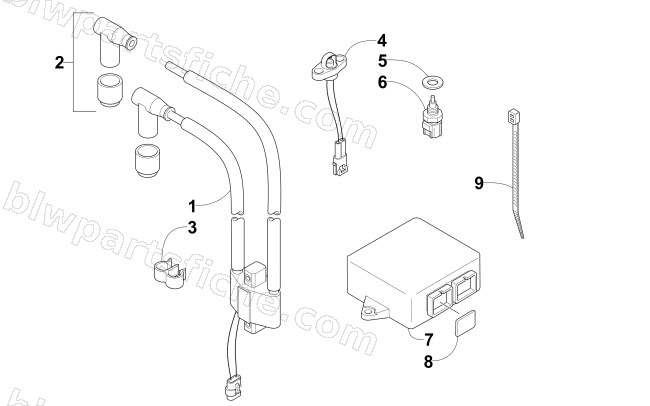

2008 Arctic Cat CROSSFIRE 500 EFI — ELECTRICAL
2008 CROSSFIRE 500 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-451 | COIL ASSY,IGNITION | 1 | $200.95 | |
| 2 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 3 | 3005-387 | CLIP | 1 | $4.40 | |
| 4 | 3006-728 | SENSOR ASSY,AIR TEMP | 1 | $137.95 | |
| 5 | 3005-233 | WASHER, COOLING WATER SENSOR | 1 | $12.35 | |
| 6 | 3007-060 | SENSOR,WATER TEMP | 1 | $216.95 | |
| 7 | 3007-593 | ECU-'08 500 L/C CF-CIRCLE | 1 | $2,725.95 | |
| 7 | 3007-594 | ECU-'08 500 L/C CF-SQUARE | 1 | $2,446.95 | |
| 7 | 3007-595 | ECU-'08 500 L/C CF-TRIANGLE | 1 | $2,725.95 | |
| 8 | 3005-908 | COVER, PORT | 1 | $27.95 | |
| 9 | 3005-237 | CLAMP,M19 | 1 | $20.63 |
