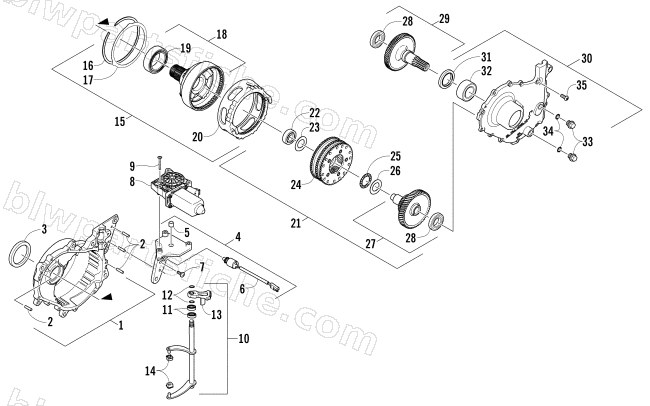

GEARCASE ASSEMBLY
2008 CROSSFIRE 500 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0702-954 | GEARCASE,REV-ACT-54T/66T 5P-M ASSY | 1 | $2,736.95 | |
| 0 | 4639-628 | ACT REVERSE GEARCASE FLUID 1-12 OZ | 1 | $17.95 | |
| 1 | 0702-951 | GEARCASE,REV-M-ASSY | 1 | $208.95 | |
| 2 | 1602-915 | PIN,DOWEL-M5 DIA X 14 | 1 | $2.47 | |
| 3 | 2602-172 | SEAL,OIL-HIGH COMP-50 X 65 X 8MM | 1 | $29.95 | |
| 4 | 0702-891 | BRKT,MTG-ACTUATOR-ASSY | 1 | $149.95 | |
| 5 | 1602-916 | BEARING,MB 0808 DU | 1 | $1.50 | |
| 6 | 0630-228 | SWITCH,ALARM-REVERSE | 1 | $109.95 | |
| 7 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 8 | 0630-283 | ACTUATOR,REVERSE-12VDC | 1 | $224.95 | |
| 9 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 10 | 1702-001 | FORK,SHIFT-66T(CAST)-ASSY | 1 | $148.95 | |
| 11 | 2602-013 | SEAL,OIL-SHIFT ROD 12X22X7 | 1 | $3.99 | |
| 12 | 2602-057 | RING, RETAINING, EXT-12MM | 1 | $0.95 | |
| 13 | 2602-007 | ARM,SHIFT FORK-11T-REVERSE (LONG) | 1 | $92.95 | |
| 14 | 2602-127 | BLOCK,SLIDER-SHIFT FORK | 1 | $4.26 | |
| 15 | 0702-910 | SLIDER,OUTER - ASSY | 1 | $838.95 | |
| 16 | 2602-040 | RING,RETAINING-136MM X 1.09MM | 1 | $17.87 | |
| 17 | 2602-064 | WASHER,THRUST-LOCK-116 X 131.5 X .9 | 1 | $13.73 | |
| 20 | 2602-063 | SLIDER, OUTER | 1 | $279.95 | |
| 21 | 1702-159 | GEAR,OUTPUT-66T/34T 5P-SPLINED | 1 | $1,283.95 | |
| 22 | 2602-108 | BEARING,TRANSFER GEAR-17mm- PEER | 1 | $8.21 | |
| 23 | 2602-058 | WASHER,SPACER-.681X1.000X.040 | 1 | $2.75 | |
| 24 | 1702-130 | GEAR,OUTPUT-5P-ASSY | 1 | $713.95 | |
| 25 | 2602-317 | BEARING, THRUST 25X42MM (INA) | 1 | $12.35 | |
| 26 | 2602-316 | WASHER, THRUST 25X42X1MM (INA) | 1 | $3.44 | |
| 27 | 1702-160 | GEAR,TRANSFER-SPLINED ASSY 66T/34T | 1 | $394.95 | |
| 28 | 1602-981 | BEARING,25MMX47MMX8MM-PEER | 1 | $17.87 | |
| 29 | 0702-686 | SHAFT,INPUT-54T W/BEARING-ASSY | 1 | $174.95 | |
| 30 | 0702-953 | COVER,GEARCASE-M-ASSY | 1 | $300.95 | |
| 31 | 2602-160 | SEAL,OIL-PRE LUBE-2.099 X 1.311 X .315 | 1 | $23.39 | |
| 32 | 1602-982 | BEARING,SHAFT-INPUT-30MM-PEER | 1 | $34.95 | |
| 33 | 2602-099 | PLUG,FILL-12 MM | 1 | $13.73 | |
| 34 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 35 | 1623-683 | SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z&B | 1 | $1.23 |
