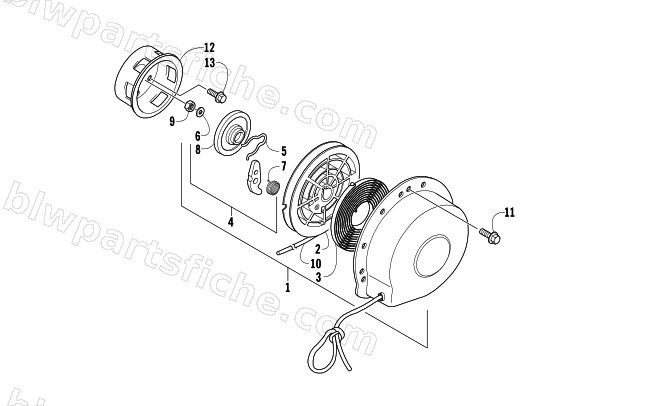

RECOIL STARTER
2008 CROSSFIRE 500 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-915 | STARTER ASS'Y, RECOIL | 1 | $305.95 | |
| 2 | 3003-179 | ROLLER,STARTER | 1 | $68.95 | |
| 3 | 3002-921 | SPRING,STARTER | 1 | $46.95 | |
| 4 | 3006-457 | RACHET SET | 1 | $49.95 | |
| 8 | 3006-475 | PLATE FRICTION | 1 | $34.95 | |
| 9 | 3006-456 | NUT,8MM | 1 | $1.95 | |
| 10 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 11 | 3007-609 | BOLT | 1 | $3.44 | |
| 12 | 3005-531 | PULLEY,STARTER | 1 | $88.95 | |
| 13 | 3007-407 | BOLT,GROUND | 1 | $3.16 |
