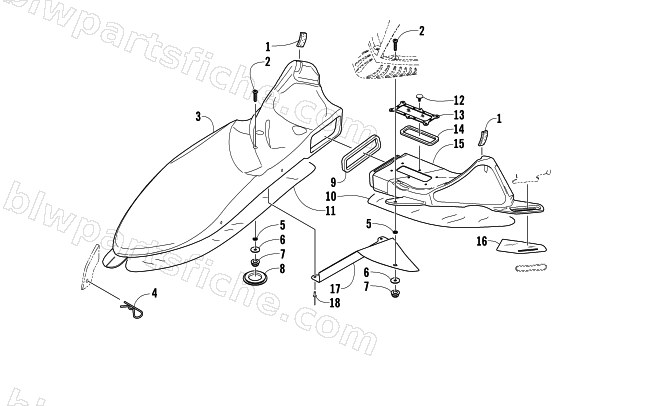

AIR INTAKE ASSEMBLY
2008 CROSSFIRE 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0617-500 | FOAM,AIR INTAKE-HEADLIGHT PIN | 1 | $7.99 | |
| 2 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 3 | 5606-048 | INTAKE,AIR-UPPER VENT-MOLDED | 1 | $102.95 | |
| 4 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 | |
| 5 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 6 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 7 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 8 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 9 | 0617-488 | FOAM,AIR INTAKE-JOINT | 1 | $3.16 | |
| 10 | 3606-811 | FOIL,PROTECTIVE-AIR INTAKE-LH | 1 | $15.11 | |
| 11 | 3606-779 | FOIL,PROTECTIVE-AIR INTAKE | 1 | $19.25 | |
| 12 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 13 | 1670-517 | SCREEN, VENT-AIR SILENCER | 1 | $85.95 | |
| 14 | 0617-499 | SEAL,AIR DUCT/SECONDARY INLET | 1 | $2.19 | |
| 15 | 3606-481 | INTAKE,AIR-UPPER L/H VENT-MOLDED | 1 | $113.95 | |
| 16 | 5606-050 | FOIL,PROTECTIVE-TAB-INTAKE MTG-RH | 1 | $1.64 | |
| 16 | 5606-051 | FOIL,PROTECTIVE-TAB-INTAKE MTG-LH | 1 | $1.64 | |
| 17 | 5606-054 | SHIELD,HEAT-HEADLIGHT | 1 | $24.77 | |
| 18 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 |
