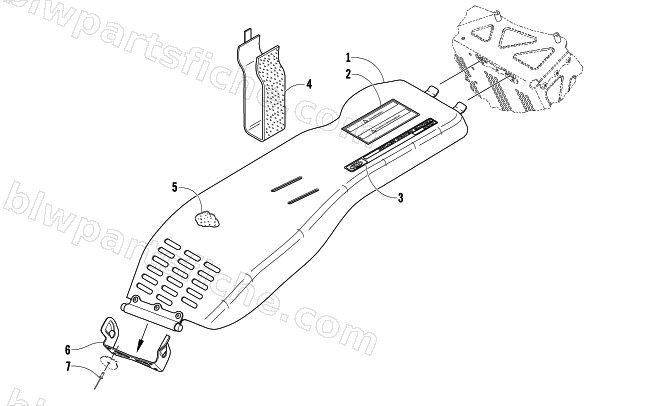

2008 Arctic Cat CROSSFIRE 800 EFI SNO PRO LIMITED EDITION — BELT GUARD ASSEMBLY
2008 CROSSFIRE 800 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-094 | GUARD,CLUTCH-FAB | 1 | $124.95 | |
| 2 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 3 | 3611-969 | DECAL, "ACT-ROLLER DRIVEN CLUTCH" | 1 | $89.95 | |
| 4 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 5 | 0617-497 | FOAM,CLUTCH GUARD | 1 | $27.95 | |
| 6 | 0607-836 | BRKT,MTG-CLUTCH GUARD/BELLYPAN-FORMED | 1 | $56.95 | |
| 7 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 |
