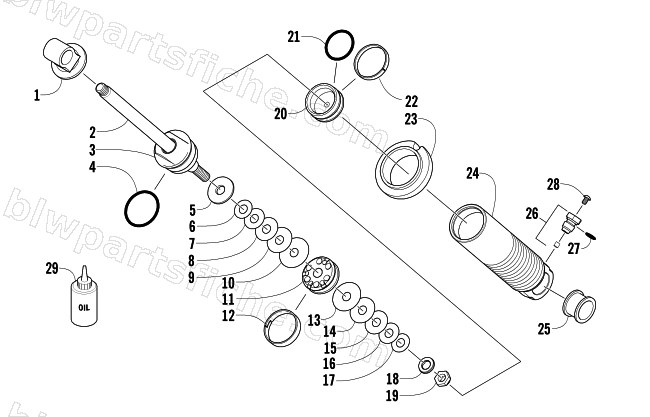

2008 Arctic Cat CROSSFIRE 800 EFI — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2008 CROSSFIRE 800 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 2 | 2604-365 | SHAFT,SHOCK-CHROME-5.858 | 1 | $66.95 | |
| 3 | 1703-453 | END CAP,.900-W/ FLATS-ASSY | 1 | $75.95 | |
| 4 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 5 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 6 | 2603-054 | VALVE,SHOCK- .800 DIA X .008 | 1 | $14.95 | |
| 7 | 2603-064 | VALVE,SHOCK- .900 DIA X .008 | 1 | $5.95 | |
| 8 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 9 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 10 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 11 | 0603-953 | PISTON, .093 ORIFICE | 1 | $94.95 | |
| 12 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 13 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 14 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 15 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 16 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 17 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 18 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 19 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 20 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 21 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 22 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 23 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 24 | 2604-596 | BODY,FRT SHOCK-ALUM-IMP-EXTR | 1 | $206.95 | |
| 25 | 2604-156 | BUSHING,SHOCK-FRT.ARM-GRAY | 1 | $8.21 | |
| 26 | 0704-796 | VALVE,PRESSURE-ASSY | 1 | $28.95 | |
| 27 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 28 | 0624-546 | SCREW,MACHINE-HSBH 6-32X1/4SS | 1 | $0.55 | |
| 29 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 29 | 0704-467 | SHOCK,FRT ARM-ASSY MELLONITE | 1 | $590.95 |
