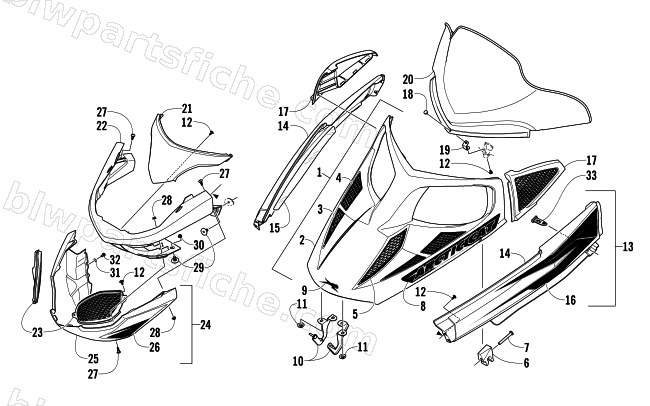

2008 Arctic Cat F1000 EFI LXR — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2008 F1000 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-176 | LID,HOOD W/DECALS-BLK | 1 | $306.95 | |
| 1 | 2718-175 | LID,HOOD W/DECALS-GRN | 1 | $269.95 | |
| 1 | 2718-174 | LID,HOOD W/DECALS-ORN | 1 | $306.95 | |
| 2 | 7999-794 | LID,HOOD-BLK-MFG ASSY | 1 | $189.95 | |
| 2 | 7999-263 | LID,HOOD-GRN-MFG ASSY | 1 | $189.95 | |
| 2 | 7999-266 | LID,HOOD-ORN-MFG ASSY | 1 | $187.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-006 | DECAL,HOOD LID-BLK "ARCTIC CAT"-RH | 1 | $46.95 | |
| 8 | 8611-007 | DECAL,HOOD LID-BLK "ARCTIC CAT"-LH | 1 | $44.95 | |
| 8 | 7611-968 | DECAL,HOOD LID-GRN "ARCTIC CAT"-RH | 1 | $46.95 | |
| 8 | 7611-969 | DECAL,HOOD LID-GRN "ARCTIC CAT"-LH | 1 | $46.95 | |
| 8 | 8611-110 | DECAL,HOOD LID-ORG "ARCTIC CAT"-RH | 1 | $73.95 | |
| 8 | 8611-111 | DECAL,HOOD LID-ORG "ARCTIC CAT"-LH | 1 | $73.95 | |
| 9 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 10 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 10 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 11 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 12 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 13 | 2718-162 | SPAR,FRONT-RH-WHT W/DECAL (STD/LXR BLK) | 1 | $57.95 | |
| 13 | 2718-163 | SPAR,FRONT-LH-WHT W/DECAL (STD/LXR BLK) | 1 | $57.95 | |
| 13 | 2718-158 | SPAR,FRONT-RH-WHT W/DECAL (STD/LXR GRN) | 1 | $71.95 | |
| 13 | 2718-159 | SPAR,FRONT-LH-WHT W/DECAL (STD/LXR GRN) | 1 | $71.95 | |
| 13 | 2718-160 | SPAR,FRONT-RH-WHT W/DECAL (STD/LXR ORN) | 1 | $54.95 | |
| 13 | 2718-161 | SPAR,FRONT-LH-WHT W/DECAL (STD/LXR ORN) | 1 | $54.95 | |
| 14 | 5606-046 | SPAR, FRONT-RH-WHITE | 1 | $43.95 | |
| 14 | 5606-047 | SPAR, FRONT-LH-WHITE | 1 | $48.95 | |
| 15 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 16 | 7611-996 | DECAL,FRT SPAR-BLK RH | 1 | $73.95 | |
| 16 | 7611-997 | DECAL,FRT SPAR-BLK LH | 1 | $88.95 | |
| 16 | 7611-992 | DECAL,FRT SPAR-GRN RH | 1 | $186.95 | |
| 16 | 7611-993 | DECAL,FRT SPAR-GRN LH | 1 | $192.95 | |
| 16 | 8611-002 | DECAL,FRT SPAR-ORN RH | 1 | $35.95 | |
| 16 | 8611-003 | DECAL,FRT SPAR-ORN LH | 1 | $39.95 | |
| 17 | 5606-924 | BEZEL,INTAKE-RH-BLK ASSY | 1 | $58.95 | |
| 17 | 5606-925 | BEZEL,INTAKE-LH-BLK ASSY | 1 | $58.95 | |
| 17 | 5606-920 | BEZEL,INTAKE-RH-GRN ASSY | 1 | $37.59 | |
| 17 | 5606-921 | BEZEL,INTAKE-LH-GRN ASSY | 1 | $54.95 | |
| 17 | 5606-926 | BEZEL,INTAKE-RH-ORG ASSY | 1 | $69.95 | |
| 17 | 5606-927 | BEZEL,INTAKE-LH-ORG ASSY | 1 | $69.95 | |
| 18 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 19 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 20 | 5606-961 | WINDSHIELD,MID | 1 | $224.95 | |
| 21 | 4606-518 | FACIA,BUMPER-UPPER-MOLD BLK | 1 | $37.95 | |
| 21 | 4606-519 | FACIA,BUMPER-UPPER-MOLD GRN | 1 | $79.95 | |
| 22 | 5606-034 | BUMPER,FRONT CLIP-MOLD WHITE | 1 | $145.95 | |
| 23 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 23 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 24 | 2718-155 | FACIA,BUMPER-LWR WHT-W/DECAL (STD/LXR) | 1 | $97.95 | |
| 25 | 5606-467 | FACIA,BUMPER-LWR-MOLD WHITE | 1 | $96.95 | |
| 26 | 7611-998 | DECAL,LWR FASCIA-FRT BUMPER-BLK RH | 1 | $26.95 | |
| 26 | 7611-999 | DECAL,LWR FASCIA-FRT BUMPER-BLK LH | 1 | $26.95 | |
| 27 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 30 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 31 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 32 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 33 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
