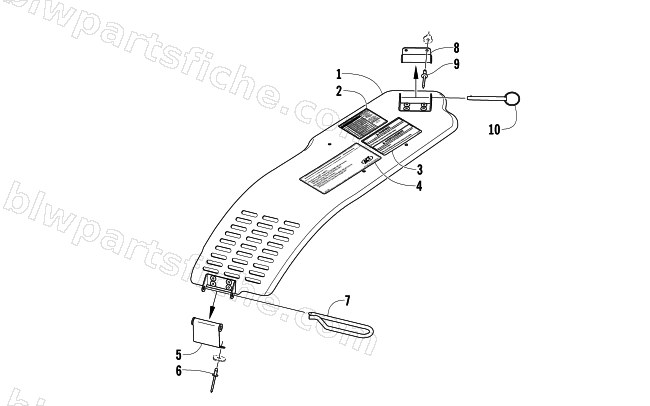

2008 Arctic Cat F1000 EFI SNO PRO LIMITED EDITION — BELT GUARD ASSEMBLY
2008 F1000 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-153 | GUARD,CLUTCH-ASSY | 1 | $291.95 | |
| 2 | 8611-251 | DECAL,EFI DIAGNOSTIC CODES-08 | 1 | $4.13 | |
| 3 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 4 | 8611-257 | DECAL,CLUTCHING-2008 F10 | 1 | $29.95 | |
| 5 | 1707-168 | HINGE, CLUTCH SHEILD-FRT-W/INSERTS | 1 | $15.11 | |
| 6 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 7 | 1623-720 | PIN, CLUTCH GUARD | 1 | $16.49 | |
| 8 | 1707-169 | HINGE, CLUTCH SHIELD-REAR-W/INSERTS | 1 | $13.73 | |
| 9 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 10 | 1623-012 | PIN, CLUTCH GUARD | 1 | $15.11 |
