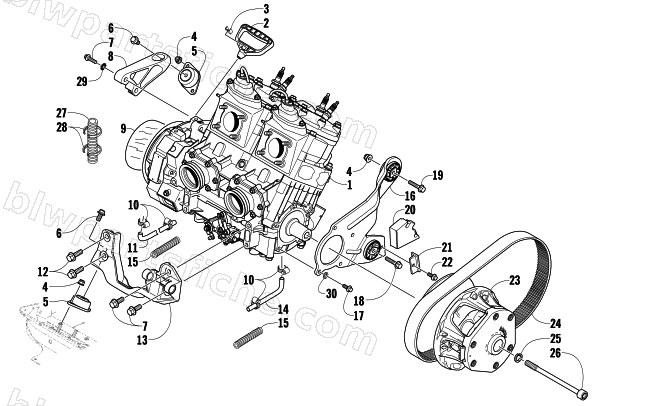

2008 Arctic Cat F1000 EFI SNO PRO LXR — ENGINE AND RELATED PARTS
2008 F1000 EFI SNO PRO LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-513 | ENGINE,1000 L/C (W/O EFI COMP) | 1 | $4,576.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 0608-496 | MOUNT,ENGINE | 1 | $49.95 | |
| 6 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 7 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 8 | 0708-474 | MOUNT,ENG-MAG,800/1000-MACH | 1 | $71.95 | |
| 9 | 4606-425 | FOIL,PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $13.73 | |
| 10 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 11 | 0610-774 | HOSE,WATER PUMP MAG/TH BODY(17.50") | 1 | $38.95 | |
| 12 | 8409-036 | SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353 | 1 | $1.92 | |
| 13 | 0745-296 | PINION/BRKT-ASSY-1000 | 1 | $370.95 | |
| 14 | 0610-731 | HOSE,THROTTLE BODY PTO/WATER PUMP(15.50) | 1 | $17.95 | |
| 15 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 16 | 0708-482 | BRKT,MTG,ENG-PTO 1000-ASSY | 1 | $180.95 | |
| 17 | 8408-821 | SCREW,CAP-HFH M8X1.25X20 CL8.8 W/2353 | 1 | $1.09 | |
| 18 | 8408-847 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&YW/204 | 1 | $1.92 | |
| 19 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 20 | 0608-511 | SNUBBER, RUBBER | 1 | $24.77 | |
| 21 | 0608-512 | BUMPER,TORQUE-MACHINED | 1 | $13.73 | |
| 22 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 23 | 0746-841 | KIT,DRIVE CLUTCH | 1 | $850.95 | |
| 24 | 0627-060 | BELT,DRIVE-PBO-1.448"WX45.998"OC-DC | 1 | $133.95 | |
| 25 | 1623-462 | WASHER,LOCK-14MM HI-COLLAR | 1 | $0.68 | |
| 26 | 1623-238 | BOLT,CLUTCH-M14 X 1.5 X 176-T60 | 1 | $53.95 | |
| 27 | 1619-131 | LOOM,PROTECTIVE-3/4 ID-12"-CTL | 1 | $3.44 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 8053-272 | WASHER,LOCK-3/8 EXT TOOTH TYP A Z&Y | 1 | $0.26 | |
| 30 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
