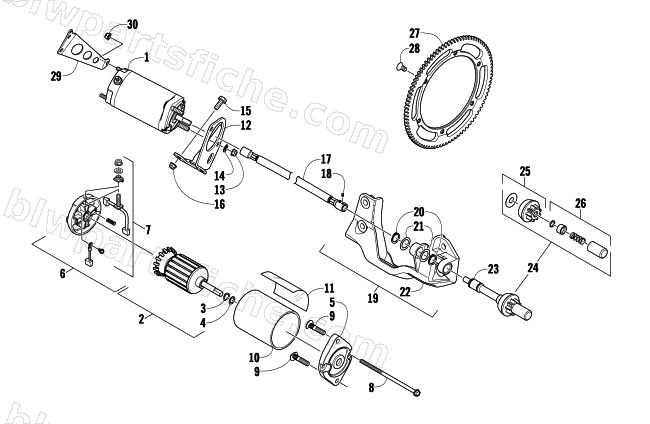

2008 Arctic Cat F1000 EFI SNO PRO LXR — FLEX-DRIVE STARTER MOTOR ASSEMBLY
2008 F1000 EFI SNO PRO LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-356 | STARTER MOTOR ASSY,FLEX-B W/RIBBOLT/NUTS | 1 | $434.95 | |
| 2 | 0645-296 | ARMATURE ASS'Y, "B PAC" FLEX ES | 1 | $378.95 | |
| 3 | 0645-131 | WASHER,WAVE-ELECT START MOTOR | 1 | $3.95 | |
| 4 | 0645-293 | WASHER, THRUST-3/8" ID ES | 1 | $4.26 | |
| 5 | 0645-297 | CAP,DRIVE-"B PAC" FLEX ES W/ZO7 | 1 | $113.95 | |
| 6 | 0645-313 | CAP,COMM-LONG TB FLEX B W/BRUSHES | 1 | $132.95 | |
| 7 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 8 | 0645-128 | BOLT,THRU 1/4-20X5.75 | 1 | $63.95 | |
| 9 | 0623-093 | BOLT, 5/16-18X1 1/2 RIBBED | 1 | $2.47 | |
| 11 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 12 | 0745-278 | BRKT,MTG-STARTER-PTD BLK | 1 | $54.95 | |
| 13 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 14 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 15 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 16 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 0745-167 | SHAFT, FLEX-BONDED ES ASSY | 1 | $125.95 | |
| 18 | 0623-891 | SCREW,SET-HS LP 10-24 X 1/4 CP BLK (LOCP | 1 | $1.37 | |
| 19 | 0745-296 | PINION/BRKT-ASSY-1000 | 1 | $370.95 | |
| 20 | 0645-382 | SNAP RING,EXTERNAL - .625 DIA | 1 | $1.64 | |
| 21 | 0645-429 | WASHER,THRUST .630I.D. X .915 O.D. | 1 | $3.95 | |
| 22 | 0745-280 | BRKT,MTG-ES FLEX PINION-W/BUSHING(1000) | 1 | $204.95 | |
| 23 | 0745-170 | DRIVE/SHAFT, PINION-FLEX 0.63-ASSY | 1 | $232.95 | |
| 24 | 0745-224 | KIT, DRIVE PINION-.63 | 1 | $106.95 | |
| 27 | 0745-402 | RING GEAR,ELECTRIC START-TREATED | 1 | $153.95 | |
| 28 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 | |
| 29 | 0745-311 | BRKT,SUPPORT-STARTER-PTD BLK | 1 | $50.95 | |
| 30 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 |
