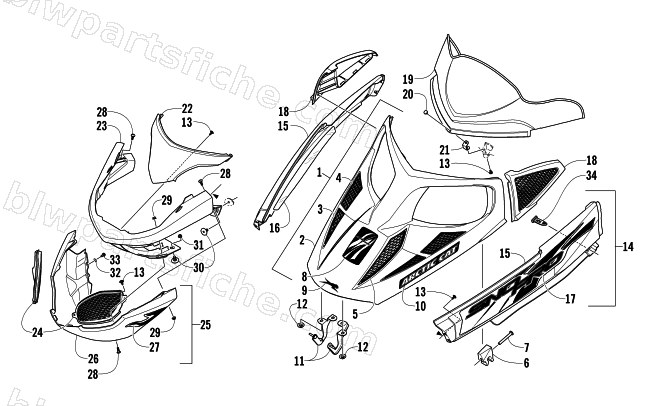

2008 Arctic Cat F1000 EFI SNO PRO LXR — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2008 F1000 EFI SNO PRO LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-178 | LID,HOOD W/DECALS-BLK | 1 | $185.95 | |
| 2 | 7999-794 | LID,HOOD-BLK-MFG ASSY | 1 | $189.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-008 | DECAL,HOOD-BLK CREST | 1 | $36.95 | |
| 9 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 10 | 8611-064 | DECAL,HOOD LID-BLK "ARCTIC CAT" | 1 | $85.95 | |
| 11 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 11 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 12 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 13 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 14 | 2718-166 | SPAR,FRONT-RH-INJ GREY W/DECAL (SP BLK) | 1 | $69.95 | |
| 14 | 2718-167 | SPAR,FRONT-LH-INJ GREY W/DECAL (SP BLK) | 1 | $62.95 | |
| 15 | 5606-074 | SPAR,FRONT-RH-MOLD INJECTION GREY | 1 | $36.95 | |
| 15 | 5606-075 | SPAR,FRONT-LH-MOLD INJECTION GREY | 1 | $38.95 | |
| 16 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 17 | 8611-066 | DECAL,FRT SPAR-BLK RH "SNO PRO" | 1 | $75.95 | |
| 17 | 8611-067 | DECAL,FRT SPAR-BLK LH "SNO PRO" | 1 | $70.95 | |
| 18 | 4706-607 | KIT,INTAKE BEZEL-BLK | 1 | $93.95 | |
| 19 | 5606-984 | WINDSHIELD,EXTREME LOW-FLAT BACK | 1 | $217.95 | |
| 20 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 21 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 22 | 4606-518 | FACIA,BUMPER-UPPER-MOLD BLK | 1 | $37.95 | |
| 23 | 5606-034 | BUMPER,FRONT CLIP-MOLD WHITE | 1 | $145.95 | |
| 24 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 24 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 25 | 2718-157 | FACIA,BUMPER-LWR WHT-W/DECAL (SP) | 1 | $97.95 | |
| 26 | 5606-467 | FACIA,BUMPER-LWR-MOLD WHITE | 1 | $96.95 | |
| 27 | 8611-042 | DECAL,LWR FACIA-FRT BUMPER-RH | 1 | $27.95 | |
| 27 | 8611-043 | DECAL,LWR FACIA-FRT BUMPER-LH | 1 | $26.95 | |
| 28 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 29 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 30 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 31 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 32 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 33 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 34 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
