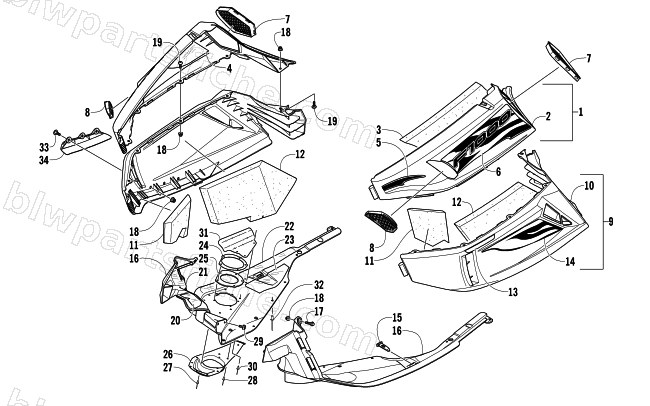

2008 Arctic Cat F1000 EFI SNO PRO — SKID PLATE AND SIDE PANEL ASSEMBLY
2008 F1000 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-254 | PANEL,SIDE-UPR INJ GREY-RH-W/DECALS(F10) | 1 | $305.95 | |
| 1 | 2718-255 | PANEL,SIDE-UPR INJ GREY-LH-W/DECALS(F10) | 1 | $351.95 | |
| 1 | 2718-252 | PANEL,SIDE-UPR GRN-RH-W/DECALS(F10 SP G) | 1 | $316.95 | |
| 1 | 2718-253 | PANEL,SIDE-UPR GRN-LH-W/DECALS(F10 SP G) | 1 | $305.95 | |
| 1 | 2718-256 | PANEL,SIDE-UPR ORN-RH-W/DECALS(F10 SP O) | 1 | $332.95 | |
| 1 | 2718-257 | PANEL,SIDE-UPR ORN-LH-W/DECALS (F10 SP O | 1 | $299.95 | |
| 2 | 2718-354 | PANEL,SIDE-UPR-W/O DECALS RH- INJ GREY | 1 | $293.95 | |
| 2 | 2718-355 | PANEL,SIDE-UPR-W/O DECALS LH- INJ GREY | 1 | $264.95 | |
| 2 | 2718-284 | PANEL,SIDE-UPR-W/O DECALS RH-GRN | 1 | $293.95 | |
| 2 | 2718-285 | PANEL,SIDE-UPR-W/O DECALS LH-GRN | 1 | $293.95 | |
| 2 | 2718-292 | PANEL,SIDE-UPR-W/O DECALS-RH ORN | 1 | $263.95 | |
| 2 | 2718-293 | PANEL,SIDE-UPR-W/O DECALS-LH ORN | 1 | $263.95 | |
| 3 | 0617-562 | FOAM,UPR SIDE PANEL-RH | 1 | $46.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 8611-052 | DECAL,UPR PANEL-FWD-BLK RH | 1 | $15.11 | |
| 5 | 8611-053 | DECAL,UPR PANEL-FWD-BLK LH | 1 | $15.11 | |
| 5 | 8611-026 | DECAL,UPR PANEL-FWD-GRN RH | 1 | $15.11 | |
| 5 | 8611-027 | DECAL,UPR PANEL-FWD-GRN LH | 1 | $13.95 | |
| 5 | 8611-078 | DECAL,UPR PANEL-FWD-ORN RH | 1 | $13.95 | |
| 5 | 8611-079 | DECAL,UPR PANEL-FWD-ORN LH | 1 | $15.11 | |
| 6 | 8611-058 | DECAL,UPR PANEL-CENTER BLK RH-"F1000" | 1 | $38.95 | |
| 6 | 8611-059 | DECAL,UPR PANEL-CENTER BLK LH-"F1000" | 1 | $54.95 | |
| 6 | 8611-032 | DECAL,UPR PANEL-CENTER GRN RH-"F1000" | 1 | $41.95 | |
| 6 | 8611-033 | DECAL,UPR PANEL-CENTER GRN LH-"F1000" | 1 | $39.95 | |
| 6 | 8611-084 | DECAL,UPR PANEL-CENTER ORN RH-"F1000" | 1 | $36.95 | |
| 6 | 8611-085 | DECAL,UPR PANEL-CENTER ORN LH-"F1000" | 1 | $85.95 | |
| 7 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 7 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 8 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 9 | 2718-232 | PANEL,SIDE-LWR BLK-RH-W/DECALS (F SP BLK | 1 | $316.95 | |
| 9 | 2718-275 | PANEL,SIDE-LWR BLK-LH-W/DECALS(F SP BLK) | 1 | $342.95 | |
| 9 | 2718-228 | PANEL,SIDE-LWR BLK-RH-W/DECALS (F SP GRN | 1 | $316.95 | |
| 9 | 2718-273 | PANEL,SIDE-LWR BLK-LH-W/DECALS(F SP GRN) | 1 | $342.95 | |
| 9 | 2718-236 | PANEL,SIDE-LWR BLK-RH-W/DECALS (F SP ORN | 1 | $316.95 | |
| 9 | 2718-277 | PANEL,SIDE-LWR BLK-LH-W/DECALS(F SP ORN) | 1 | $342.95 | |
| 10 | 2718-524 | PANEL,SIDE-LWR-W/O DECALS RH-BLK(2 STRK) | 1 | $288.95 | |
| 10 | 2718-525 | PANEL,SIDE-LWR-W/O DECALS LH-BLK | 1 | $279.95 | |
| 11 | 0617-564 | FOAM,LWR SIDE PANEL-FRT RH | 1 | $16.49 | |
| 11 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 12 | 0617-568 | FOAM,LWR SIDE PANEL-REAR RH | 1 | $93.95 | |
| 12 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 13 | 8611-181 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 14 | 8611-062 | DECAL,LWR PANEL-BLK RH | 1 | $38.95 | |
| 14 | 8611-063 | DECAL,LWR PANEL-BLK LH | 1 | $38.95 | |
| 14 | 8611-036 | DECAL,LWR PANEL-GRN RH | 1 | $38.95 | |
| 14 | 8611-037 | DECAL,LWR PANEL-GRN LH | 1 | $38.95 | |
| 14 | 8611-088 | DECAL,LWR PANEL-ORN RH | 1 | $70.95 | |
| 14 | 8611-089 | DECAL,LWR PANEL-ORN LH | 1 | $72.95 | |
| 15 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 16 | 3706-706 | PLATE,SKID-BLK RH-ROUTED | 1 | $62.95 | |
| 16 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 17 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 20 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 21 | 4606-982 | FOIL,RH SKID PLATE-HINGE | 1 | $15.11 | |
| 22 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 23 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 24 | 1712-348 | PLATE,EXHAUST OUTLET SEAL-PTD BLK | 1 | $15.11 | |
| 25 | 2612-156 | SEAL,EXHAUST OUTLET-2 STRK | 1 | $17.87 | |
| 26 | 1712-501 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $32.95 | |
| 27 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 28 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 29 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 30 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 31 | 2612-268 | SHIELD,HEAT-RH SKID PLATE | 1 | $22.01 | |
| 32 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 33 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 34 | 5606-404 | DEFLECTOR,EXHAUST | 1 | $9.79 |
