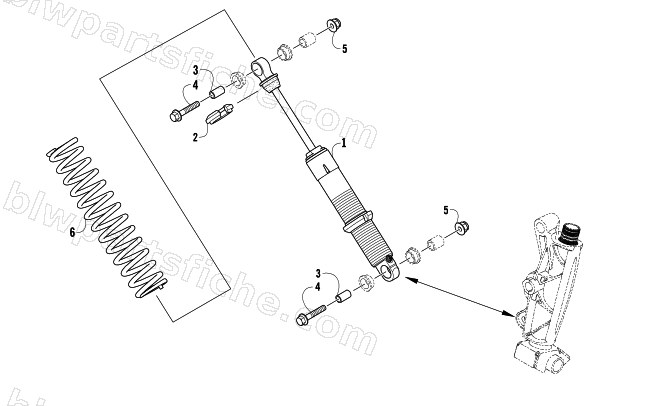

SHOCK ABSORBER ASSEMBLY
2008 F1000 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-471 | SHOCK, SKI MONO TUBE 17.42" (442.4mm) SP | 1 | $381.95 | |
| 2 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 2 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 3 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 4 | 8408-055 | SCREW,CAP-HFH M10X1.25X55 CL8.8 Z&Y | 1 | $3.16 | |
| 5 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 2703-258 | SPRING,SKI SHOCK-PTD WHITE | 1 | $71.95 | |
| 6 | 2703-128 | SPRING,SKI SHOCK-PTD GRN | 1 | $81.95 |
