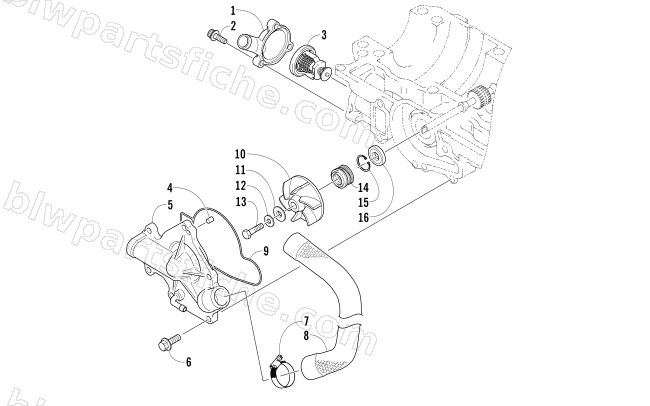

WATER PUMP AND THERMOSTAT
2008 F5 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-914 | CAP,THERMOSTAT | 1 | $84.95 | |
| 2 | 3007-446 | BOLT,THERMOSTAT CAP | 1 | $3.44 | |
| 3 | 3007-041 | THERMOSTAT,WATER | 1 | $101.95 | |
| 4 | 3005-899 | PIN | 1 | $3.44 | |
| 5 | 3006-942 | COVER ASSY.-WATER PUMP | 1 | $295.95 | |
| 6 | 3007-409 | BOLT | 1 | $3.16 | |
| 7 | 3006-324 | CLAMP '02 440 SNO PRO | 1 | $29.95 | |
| 9 | 3006-356 | O-RING,WATER PUMP COVER '02 440 SNO PRO | 1 | $49.95 | |
| 10 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 11 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 12 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 13 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 14 | 3007-180 | SEAL,MECHANICAL | 1 | $52.95 | |
| 15 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 | |
| 16 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 |
