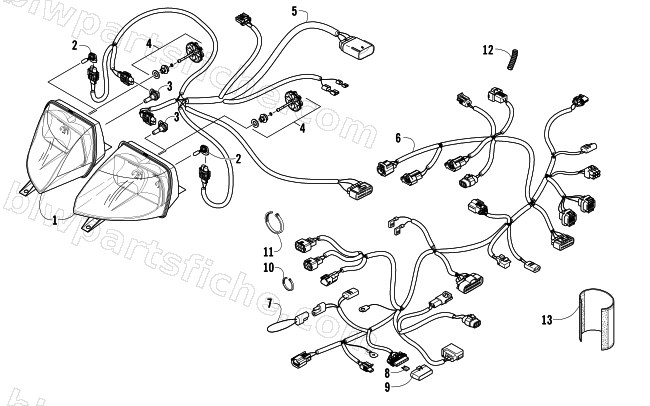

HEADLIGHT AND WIRING ASSEMBLIES
2008 F6 EFI LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-808 | HEADLIGHT,RH BLK-ASSY | 1 | $212.95 | |
| 1 | 0609-809 | HEADLIGHT,LH BLK-ASSY | 1 | $216.95 | |
| 2 | 0609-783 | BULB,LOW BEAM | 1 | $50.95 | |
| 3 | 0609-782 | BULB,HIGH BEAM | 1 | $49.95 | |
| 4 | 0609-779 | ADJUSTER,HEADLIGHT-ASSY | 1 | $41.95 | |
| 5 | 1686-425 | HARNESS,CONSOLE-2-STROKE W/ELEC START | 1 | $249.95 | |
| 6 | 1686-411 | HARNESS,MAIN-2008 LXR 600 | 1 | $793.95 | |
| 7 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 8 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 12 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 13 | 3706-761 | WRAP,WIRE HARNESS | 1 | $13.73 |
