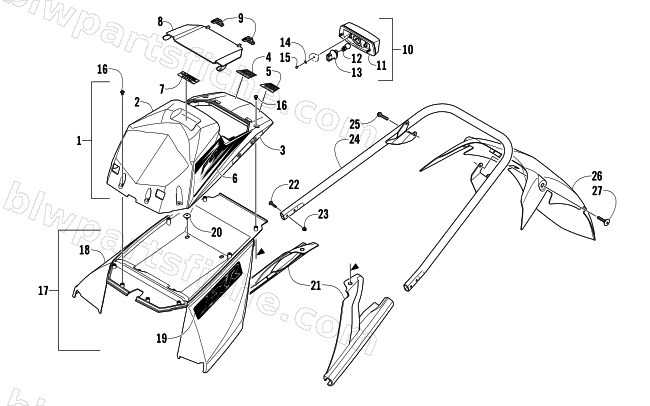

2008 Arctic Cat F6 EFI LXR — REAR BUMPER, STORAGE BOX, AND TAILLIGHT ASSEMBLY
2008 F6 EFI LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4706-055 | BAG,TOOL KIT-ASSY(08 PROD) | 1 | $30.95 | |
| 1 | 2718-191 | BOX,STORAGE-REAR-BLK W/DECALS | 1 | $214.95 | |
| 1 | 2718-190 | BOX,STORAGE-REAR-BLK W/DECALS | 1 | $208.95 | |
| 1 | 2718-192 | BOX,STORAGE-REAR-BLK W/DECALS | 1 | $223.95 | |
| 1 | 2718-447 | BOX,STORAGE-REAR BLK-W/DECALS | 1 | $228.95 | |
| 2 | 2718-365 | BOX,STORAGE-REAR-BLK W/O DECALS | 1 | $143.95 | |
| 3 | 8611-182 | DECAL,REFLECTOR-RED-RH | 1 | $26.95 | |
| 3 | 8611-183 | DECAL,REFLECTOR-RED-LH | 1 | $26.95 | |
| 4 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 5 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 6 | 7611-962 | DECAL,REAR FENDER-BLK RH "F6" | 1 | $54.95 | |
| 6 | 7611-963 | DECAL,REAR FENDER-BLK LH "F6" | 1 | $54.95 | |
| 6 | 7611-952 | DECAL,REAR FENDER-GRN RH "F6" | 1 | $52.95 | |
| 6 | 7611-953 | DECAL,REAR FENDER-GRN LH "F6" | 1 | $52.95 | |
| 6 | 7611-972 | DECAL,REAR FENDER-ORN RH "F6" | 1 | $52.95 | |
| 6 | 7611-973 | DECAL,REAR FENDER-ORN LH "F6" | 1 | $52.95 | |
| 6 | 8611-286 | DECAL,REAR FENDER-PNK RH "F6" | 1 | $53.95 | |
| 6 | 8611-287 | DECAL,REAR FENDER-PNK LH "F6" | 1 | $53.95 | |
| 7 | 7611-902 | DECAL,STORAGE BOX-SEAT ADJUSTMENT | 1 | $73.95 | |
| 8 | 4606-732 | LID,STORAGE BOX-MOLD BLK | 1 | $24.95 | |
| 9 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 10 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 11 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 12 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 13 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 14 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 15 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 16 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 17 | 2718-182 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $177.95 | |
| 17 | 2718-183 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $180.95 | |
| 17 | 2718-448 | FENDER,REAR TUNNEL (ROUTED)-BLK W/DECAL | 1 | $169.95 | |
| 18 | 4706-162 | FENDER,REAR-ROUTED BLK | 1 | $200.95 | |
| 19 | 7611-958 | DECAL,REAR FENDER-"LXR" | 1 | $32.95 | |
| 19 | 8611-180 | DECAL,REAR FENDER-"LXR" | 1 | $32.95 | |
| 19 | 8611-300 | DECAL,REAR FENDER-"LXR" PNK | 1 | $32.95 | |
| 20 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 21 | 4606-728 | PANEL,FILLER-SNOW FLAP-RH | 1 | $32.95 | |
| 21 | 4606-729 | PANEL,FILLER-SNOW FLAP-LH | 1 | $32.95 | |
| 22 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 1707-103 | BUMPER,REAR-128" WELD'T | 1 | $128.95 | |
| 25 | 1623-428 | SCREW,CAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y | 1 | $4.95 | |
| 26 | 3706-920 | FLAP,SNOW-ROUTED | 1 | $200.95 | |
| 27 | 1623-532 | SCREW,SELF TAPPING-M8X45 TRILOBE Z&Y | 1 | $7.95 |
