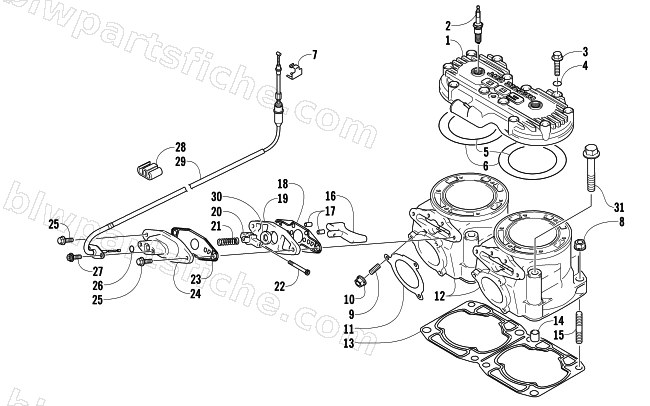

CYLINDER AND HEAD ASSEMBLY
2008 F6 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-642 | HEADCOMP,CYLINDER- 03 600 L/C D | 1 | $647.95 | |
| 2 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 3 | 3007-432 | BOLT | 1 | $3.44 | |
| 4 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 5 | 3003-335 | O RING,HEAD-INNER | 1 | $33.95 | |
| 6 | 3006-490 | O-RING,D:1.9/ID:123.7 | 1 | $22.01 | |
| 7 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 8 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 9 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 10 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 11 | 3006-516 | GASKET,EXHAUST | 1 | $19.25 | |
| 12 | 3006-643 | CYLINDER, 03 600L/C D | 1 | $1,378.95 | |
| 13 | 3006-493 | GASKET,BASE - CYLINDER | 1 | $30.95 | |
| 14 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 15 | 3005-847 | BOLT, STUD | 1 | $9.59 | |
| 16 | 3006-644 | VALVE,EXHAUST | 1 | $275.95 | |
| 17 | 3006-321 | PIN,5X10 '02 440 SNO PRO | 1 | $10.95 | |
| 18 | 3006-329 | GASKET, EXHAUST VALVE COVER | 1 | $12.35 | |
| 19 | 3006-495 | PLATE,EXHAUST VALVE | 1 | $58.95 | |
| 20 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 21 | 3006-484 | SPRING | 1 | $6.34 | |
| 22 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 23 | 3006-436 | GASKET,EXHAUST VALVE COVER | 1 | $5.51 | |
| 24 | 3006-425 | COVER,EXHAUST VALVE | 1 | $84.95 | |
| 25 | 3007-434 | BOLT | 1 | $3.16 | |
| 26 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 27 | 3007-433 | BOLT | 1 | $3.16 | |
| 28 | 3005-808 | CLAMP | 1 | $6.95 | |
| 29 | 3007-455 | CABLE,EXHAUST VALVE-LONG | 1 | $97.95 | |
| 29 | 3007-456 | CABLE,EXHAUST VALVE-SHORT | 1 | $97.95 | |
| 30 | 3006-322 | SEAL,OIL,12X21X7 '02 440 SNO PRO | 1 | $49.95 | |
| 31 | 3005-846 | BOLT, 10X115 | 1 | $12.35 |
