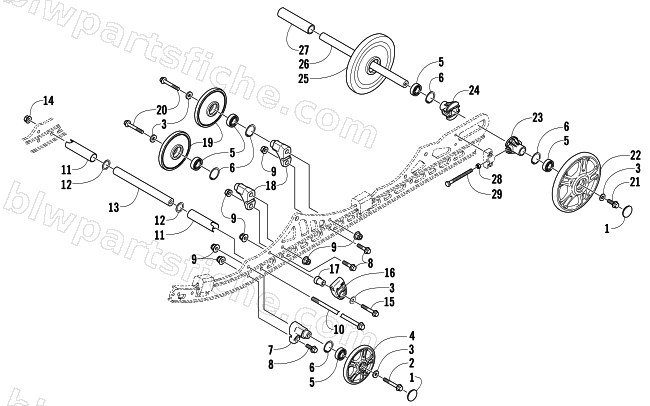

2008 Arctic Cat F8 EFI SNO PRO LIMITED EDITION — IDLER WHEEL ASSEMBLY
2008 F8 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-952 | CAP,IDL WHL-BLACK | 1 | $13.73 | |
| 2 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 3 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 4 | 3604-386 | WHEEL,IDL-5.63 W.787"ID BLK (SPOKE) | 1 | $53.95 | |
| 5 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 6 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 7 | 3604-207 | BLOCK 1.904",MTG-IDLER WHEEL-DIE CAST | 1 | $29.95 | |
| 8 | 8408-835 | SCREW,CAP-HFH M8X1.25X35 CL8.8 Z&Y | 1 | $2.06 | |
| 9 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 10 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 11 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 12 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 13 | 3604-269 | AXLE,ALUM-22.2 X 222.2 | 1 | $60.95 | |
| 14 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 15 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 16 | 2604-516 | SLIDE, SPRING-TALL | 1 | $6.06 | |
| 17 | 3604-204 | BLOCK,SLIDE-SPRING-PM-1.20" | 1 | $13.73 | |
| 18 | 3604-004 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $29.95 | |
| 19 | 3604-039 | WHEEL,IDL-5.63 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 20 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 | |
| 21 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 22 | 3604-063 | WHEEL,IDL-7.12 W.787"ID BLK | 1 | $53.95 | |
| 23 | 1704-490 | BUSHING,ADJUSTER-3 WHL-SHORT-MACH | 1 | $12.35 | |
| 24 | 2604-881 | BUSHING,ADJUSTER-4 WHL | 1 | $5.51 | |
| 25 | 3604-060 | WHEEL,IDL-7.12 W.787"ID BLK(NO SPOKE) | 1 | $53.95 | |
| 26 | 3604-300 | AXLE,REAR WHEEL-STEEL-M8 X 320.6 | 1 | $62.95 | |
| 27 | 1604-810 | SPACER,REAR WHEEL-CTR | 1 | $32.95 | |
| 28 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 29 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 |
