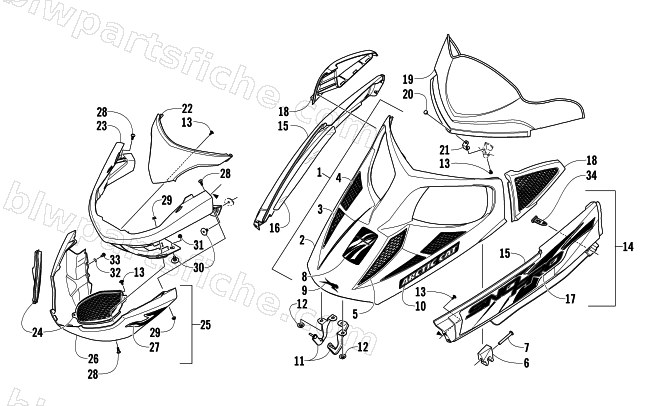

2008 Arctic Cat F8 EFI SNO PRO — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2008 F8 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2718-179 | LID,HOOD W/DECALS-ORN | 1 | $298.95 | |
| 1 | 2718-178 | LID,HOOD W/DECALS-BLK | 1 | $185.95 | |
| 1 | 2718-177 | LID,HOOD W/DECALS-GRN | 1 | $225.95 | |
| 2 | 7999-794 | LID,HOOD-BLK-MFG ASSY | 1 | $189.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-614 | CLIP,RUBBER-HOOD-HOLDDOWN-RH | 1 | $13.73 | |
| 6 | 1623-615 | CLIP,RUBBER-HOOD-HOLDDOWN-LH | 1 | $13.73 | |
| 7 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 8 | 8611-016 | DECAL,HOOD-ORN CREST | 1 | $88.95 | |
| 8 | 8611-008 | DECAL,HOOD-BLK CREST | 1 | $36.95 | |
| 8 | 8611-001 | DECAL,HOOD-GRN CREST | 1 | $85.95 | |
| 9 | 8611-267 | DECAL,AIRCAT-DYMOFLEX CHROME | 1 | $20.63 | |
| 10 | 8611-090 | DECAL,HOOD LID-ORN "ARCTIC CAT" | 1 | $88.95 | |
| 10 | 8611-064 | DECAL,HOOD LID-BLK "ARCTIC CAT" | 1 | $85.95 | |
| 10 | 8611-038 | DECAL,HOOD LID-GRN "ARCTIC CAT"- | 1 | $33.95 | |
| 11 | 3706-348 | BRKT,LID HINGE- RH-PTD BLK | 1 | $24.77 | |
| 11 | 3706-347 | BRKT,LID HINGE-LH-PTD BLK | 1 | $24.77 | |
| 12 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 13 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 14 | 2718-168 | SPAR,FRONT-RH-ORN W/DECAL (SP ORN) | 1 | $102.95 | |
| 14 | 2718-169 | SPAR,FRONT-LH-ORN W/DECAL (SP ORN) | 1 | $102.95 | |
| 14 | 2718-166 | SPAR,FRONT-RH-INJ GREY W/DECAL (SP BLK) | 1 | $69.95 | |
| 14 | 2718-167 | SPAR,FRONT-LH-INJ GREY W/DECAL (SP BLK) | 1 | $62.95 | |
| 14 | 2718-164 | SPAR,FRONT-RH-GRN W/DECAL (SP GRN) | 1 | $72.95 | |
| 14 | 2718-165 | SPAR,FRONT-LH-GRN W/DECAL (SP GRN) | 1 | $64.95 | |
| 15 | 4606-900 | SPAR,FRONT-RH-MOLD ORN | 1 | $66.95 | |
| 15 | 4606-901 | SPAR,FRONT-LH-MOLD ORN | 1 | $66.95 | |
| 15 | 5606-074 | SPAR,FRONT-RH-MOLD INJECTION GREY | 1 | $36.95 | |
| 15 | 5606-075 | SPAR,FRONT-LH-MOLD INJECTION GREY | 1 | $38.95 | |
| 15 | 4606-892 | SPAR,FRONT-RH-MOLD GRN | 1 | $43.95 | |
| 15 | 4606-893 | SPAR,FRONT-LH-MOLD GRN | 1 | $43.95 | |
| 16 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 17 | 8611-092 | DECAL,FRT SPAR-ORN RH "SNO PRO" | 1 | $141.95 | |
| 17 | 8611-093 | DECAL,FRT SPAR-ORN LH "SNO PRO" | 1 | $141.95 | |
| 17 | 8611-066 | DECAL,FRT SPAR-BLK RH "SNO PRO" | 1 | $75.95 | |
| 17 | 8611-067 | DECAL,FRT SPAR-BLK LH "SNO PRO" | 1 | $70.95 | |
| 17 | 8611-040 | DECAL,FRT SPAR-GRN RH "SNO PRO" | 1 | $85.95 | |
| 17 | 8611-041 | DECAL,FRT SPAR-GRN LH "SNO PRO" | 1 | $85.95 | |
| 18 | 4706-607 | KIT,INTAKE BEZEL-BLK | 1 | $93.95 | |
| 19 | 5606-984 | WINDSHIELD,EXTREME LOW-FLAT BACK | 1 | $217.95 | |
| 19 | 5606-960 | WINDSHIELD,LOW-TINT | 1 | $200.95 | |
| 20 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 21 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 22 | 4606-518 | FACIA,BUMPER-UPPER-MOLD BLK | 1 | $37.95 | |
| 23 | 5606-034 | BUMPER,FRONT CLIP-MOLD WHITE | 1 | $145.95 | |
| 24 | 4606-604 | VENT,BUMPER-RH-MOLD BLK | 1 | $26.95 | |
| 24 | 4606-605 | VENT,BUMPER-LH-MOLD BLK | 1 | $26.95 | |
| 25 | 2718-157 | FACIA,BUMPER-LWR WHT-W/DECAL (SP) | 1 | $97.95 | |
| 26 | 5606-467 | FACIA,BUMPER-LWR-MOLD WHITE | 1 | $96.95 | |
| 27 | 8611-042 | DECAL,LWR FACIA-FRT BUMPER-RH | 1 | $27.95 | |
| 27 | 8611-043 | DECAL,LWR FACIA-FRT BUMPER-LH | 1 | $26.95 | |
| 28 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 29 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 30 | 0423-130 | SCREW,FUEL TANK | 1 | $5.65 | |
| 31 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 32 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 33 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 34 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 |
