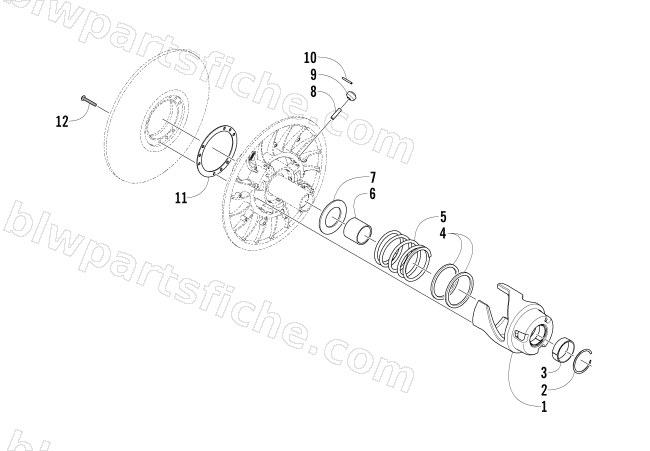

2008 Arctic Cat JAGUAR Z1 1100 EFI SNO PRO LIMITED EDITION — DRIVEN CLUTCH
2008 JAGUAR Z1 1100 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-280 | CLUTCH,DRIVEN-10.4{48/40 ORANGE} | 1 | $735.95 | |
| 1 | 0748-687 | CAM,DRIVEN-48/40 DEG W/ BRG-ASSY | 1 | $201.95 | |
| 1 | 0748-662 | CAM,DRIVEN-36 DEG W/ BRG-ASSY | 1 | $206.95 | |
| 2 | 0648-433 | RING,SNAP-1 3/4 VH175 | 1 | $3.02 | |
| 3 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 4 | 0648-713 | SEAT, SPRING-DRIVEN | 1 | $3.57 | |
| 5 | 0648-774 | SPRING,DRIVEN-175-280-ORANGE | 1 | $27.95 | |
| 6 | 0648-753 | SPACER, ACT DRIVEN - CASTED CAM | 1 | $5.51 | |
| 7 | 0648-453 | SEAT,SPRING-DRVN | 1 | $7.03 | |
| 8 | 0648-097 | PIN,CAM ROLLER | 1 | $2.88 | |
| 9 | 0648-139 | ROLLER,DRIVEN CLUTCH | 1 | $12.35 | |
| 10 | 8070-224 | PIN,SPRING-1/8 X 1 SLOTTED Z&Y | 1 | $0.40 | |
| 11 | 0637-322 | UPDATE KIT,TORQUE BRACKET RETAINER | 1 | $19.25 | |
| 12 | 1623-517 | SCREW,MACH-TSBH 10-24X1.25 W/2353 | 1 | $3.80 |
