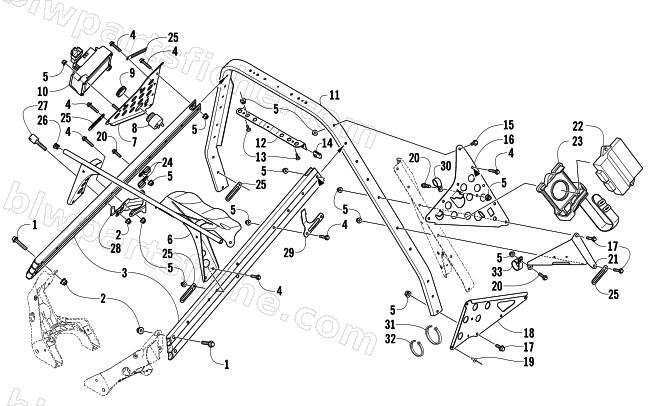

2008 Arctic Cat JAGUAR Z1 1100 EFI SNO PRO LIMITED EDITION — STEERING SUPPORT ASSEMBLY
2008 JAGUAR Z1 1100 EFI SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 2 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 3 | 0607-814 | FRAME,UPR-FRT INNER-MACH | 1 | $38.95 | |
| 4 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 3706-659 | BRKT,HEADLIGHT SUPPORT-W/HEAT SHIELD | 1 | $251.95 | |
| 7 | 1707-100 | GUSSET,SUPPORT W/ STUDS-RH | 1 | $26.95 | |
| 8 | 0630-243 | ALARM,REVERSE-DC ONLY | 1 | $106.95 | |
| 9 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 10 | 0637-341 | KIT,UPDATE-CONTROL MODULE | 1 | $422.95 | |
| 11 | 0605-949 | SUPPORT,STEERING-MACH | 1 | $120.95 | |
| 12 | 5606-132 | PLATE,NUT-STEERING SUPPORT-4 STROKE | 1 | $34.95 | |
| 13 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 14 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 15 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 16 | 0607-897 | GUSSET,SUPPORT-STEERING SUPPORT/SPAR-LH | 1 | $58.95 | |
| 17 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 18 | 3706-632 | BRKT, OUTER FOOTREST-RH-PTD BLK | 1 | $23.39 | |
| 18 | 3706-633 | BRKT, OUTER FOOTREST-LH-PTD BLK | 1 | $23.39 | |
| 19 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 20 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 21 | 4606-908 | BRKT,SUPPORT-CLUTCH GUARD | 1 | $16.49 | |
| 22 | 3007-573 | ECU 07 Z1 | 1 | $2,446.95 | |
| 23 | 0645-506 | MOUNT,ECU | 1 | $34.95 | |
| 24 | 1623-733 | CLAMP,DOUBLE TUBE-.375 DIA | 1 | $1.78 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 27 | 2612-247 | PIN,MTG-RES/CHASSIS-1.25 | 1 | $16.49 | |
| 28 | 3706-682 | BRKT,COOLANT TANK-PTD | 1 | $22.95 | |
| 29 | 4606-925 | BRKT,SENSOR-MAP | 1 | $16.49 | |
| 30 | 1623-722 | CLAMP,CABLE-7/8 INSUL-1/4" MTG | 1 | $1.92 | |
| 31 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 32 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
