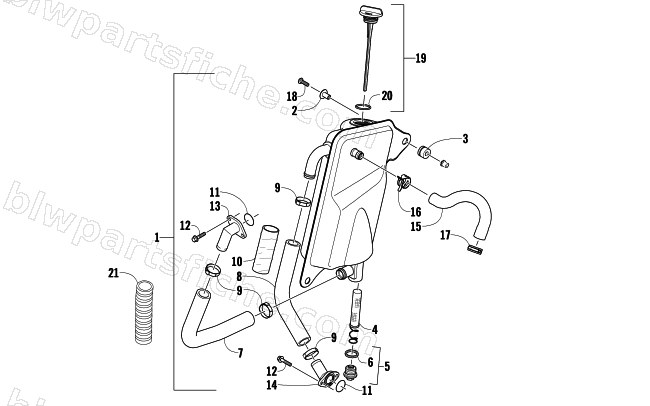

2008 Arctic Cat JAGUAR Z1 1100 EFI SNO PRO — OIL TANK ASSEMBLY
2008 JAGUAR Z1 1100 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-934 | TANK,OIL ASSY-Z1/TZ1 | 1 | $564.95 | |
| 2 | 1623-573 | BUSHING,FLANGED-OIL TANK | 1 | $15.11 | |
| 3 | 1670-729 | GROMMET, OIL TANK | 1 | $1.37 | |
| 4 | 1670-983 | SCREEN,OIL TANK | 1 | $29.95 | |
| 5 | 1670-914 | PLUG,DRAIN-OIL TANK | 1 | $23.39 | |
| 6 | 1670-926 | O-RING,OIL TANK DRAIN PLUG | 1 | $0.68 | |
| 7 | 0610-641 | HOSE, OIL FEED | 1 | $62.95 | |
| 8 | 0610-642 | HOSE, OIL RETURN | 1 | $50.95 | |
| 9 | 1623-515 | CLAMP,HOSE-29.9MM TO 33.1MM | 1 | $4.40 | |
| 10 | 0610-790 | LOOM,COOLANT HOSE-5 FT | 1 | $132.95 | |
| 11 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 12 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 | |
| 13 | 1670-727 | FITTING, OIL SUPPLY-ENGINE | 1 | $85.95 | |
| 14 | 1670-726 | FITTING, OIL RETURN-ENGINE | 1 | $85.95 | |
| 15 | 0610-664 | HOSE, BREATHER-OIL TANK | 1 | $33.95 | |
| 16 | 1623-285 | CLAMP,HOSE-SPRING (12W X 22) | 1 | $2.88 | |
| 17 | 1623-289 | CLAMP,HOSE-SPRING (12W X 26) | 1 | $3.57 | |
| 18 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 19 | 2670-136 | CAP,OIL TANK-W/ O-RING | 1 | $29.95 | |
| 20 | 2670-135 | O-RING,OIL CAP | 1 | $2.19 | |
| 21 | 1619-354 | PROTECTOR,HOSE-1.48X1.25X5' | 1 | $37.95 |
