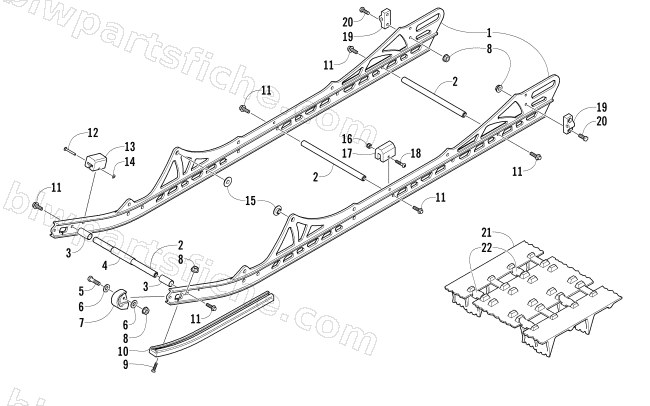

2008 Arctic Cat M1000 EFI 153 SNO PRO — SLIDE RAILS AND TRACK ASSEMBLY
2008 M1000 EFI 153 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-640 | SUSP,REAR-153" ACT-ORN-ASSY | 1 | $4,876.95 | |
| 1 | 3604-237 | RAIL,SUSP-153" FORMED-MACH | 1 | $390.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 2604-659 | SPACER,AL-.750 X .058 X 1.50 | 1 | $9.95 | |
| 4 | 2604-660 | SPACER,AL-.750 X .058 X 2.50 | 1 | $12.95 | |
| 5 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 11 | 1623-502 | SCREW,CAP-HFH 5/16-18X1.25 W/2353 | 1 | $1.78 | |
| 12 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 13 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 14 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 15 | 2604-733 | INSERT,RAIL-3/8 X 1.00" | 1 | $12.35 | |
| 16 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 17 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 18 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 19 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 20 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 21 | 1602-995 | TRACK,CHALL-15"X153"X2.25" (3.0 PITCH) | 1 | $1,529.95 | |
| 22 | 2602-385 | CLIP,GUIDE | 1 | $4.40 |
