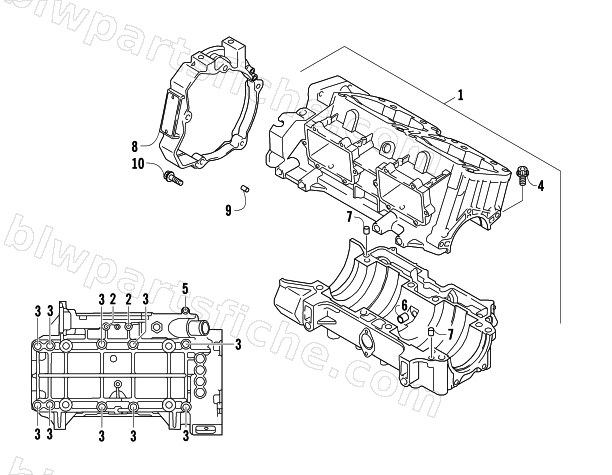

CRANKCASE ASSEMBLY
2008 M1000 EFI 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-620 | CRANKCASE ASSY | 1 | $1,494.95 | |
| 2 | 3006-650 | BOLT,6X100 | 1 | $4.26 | |
| 3 | 3007-252 | BOLT (10X105) | 1 | $9.59 | |
| 4 | 3007-445 | BOLT | 1 | $2.75 | |
| 5 | 3007-381 | BOLT | 1 | $3.16 | |
| 6 | 3007-253 | BUSH | 1 | $20.63 | |
| 7 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 8 | 3007-254 | CASE,MAGNETO | 1 | $359.95 | |
| 9 | 3006-547 | PIN.KNOCK | 1 | $31.95 | |
| 10 | 3007-256 | BOLT | 1 | $3.95 |
