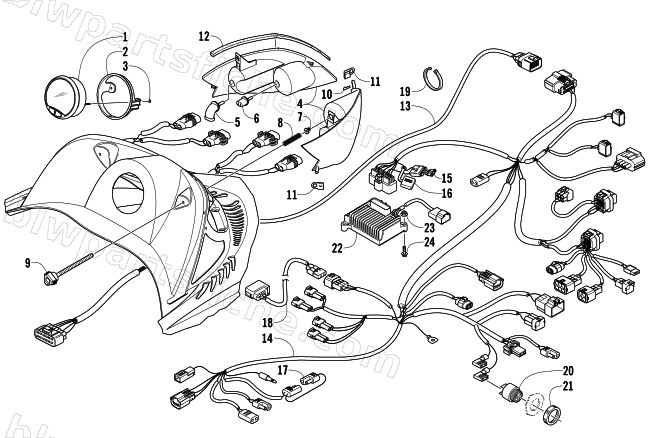

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2008 M1000 EFI 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-348 | SPEEDO,LCD-08' M SERIES-CALIB-MID LVL | 1 | $518.95 | |
| 2 | 0620-322 | BRKT,RETAINER-SPEEDO/TACH | 1 | $9.59 | |
| 3 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 4 | 0609-848 | HEADLIGHT,RH-(CF/M)-ASSY | 1 | $216.95 | |
| 4 | 0609-849 | HEADLIGHT,LH-(CF/M)-ASSY | 1 | $216.95 | |
| 5 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 6 | 0609-693 | BULB,HEADLIGHT-(2.93A)-STRAIGHT | 1 | $29.95 | |
| 7 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 8 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 9 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 10 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 | |
| 11 | 1623-272 | CLIP,U-TYPE-RH | 1 | $17.87 | |
| 11 | 1623-273 | CLIP,U-TYPE-LH | 1 | $16.49 | |
| 12 | 0617-501 | FOAM,HOOD/HEADLIGHT | 1 | $3.16 | |
| 13 | 1686-396 | HARNESS,HOOD (08 CF/M) | 1 | $227.95 | |
| 14 | 1686-394 | HARNESS,MAIN ('08 CF/M1000) | 1 | $889.95 | |
| 15 | 0630-024 | FUSE, 15 AMP | 1 | $4.40 | |
| 17 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 18 | 1686-340 | HARNESS,EXTENSION-TAILLIGHT (85.50") | 1 | $54.95 | |
| 19 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 20 | 0630-010 | ALARM,REVERSE | 1 | $112.95 | |
| 21 | 0630-017 | RING,RETAINING-REV ALARM | 1 | $12.35 | |
| 22 | 0630-246 | MOD,CONTROL-DC REG/REV-08 F/T 2-STRK | 1 | $465.95 | |
| 23 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 24 | 8017-584 | SCREW,MACH-TSTRH 1/4-20 X 1 1/4 GR2 Z&Y | 1 | $1.23 |
