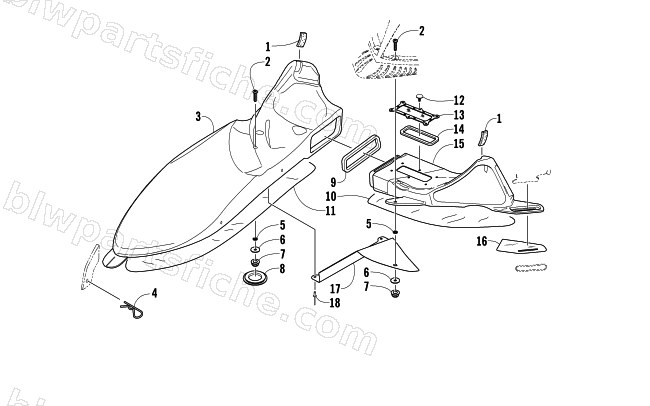

2008 Arctic Cat M1000 EFI 162 SNO PRO LIMITED EDITION — AIR INTAKE ASSEMBLY
2008 M1000 EFI 162 SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0617-500 | FOAM,AIR INTAKE-HEADLIGHT PIN | 1 | $7.99 | |
| 2 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 3 | 5606-048 | INTAKE,AIR-UPPER VENT-MOLDED | 1 | $102.95 | |
| 4 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 | |
| 5 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 6 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 7 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 8 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 9 | 0617-488 | FOAM,AIR INTAKE-JOINT | 1 | $3.16 | |
| 10 | 3606-811 | FOIL,PROTECTIVE-AIR INTAKE-LH | 1 | $15.11 | |
| 11 | 3606-779 | FOIL,PROTECTIVE-AIR INTAKE | 1 | $19.25 | |
| 12 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 13 | 1670-517 | SCREEN, VENT-AIR SILENCER | 1 | $85.95 | |
| 14 | 0617-499 | SEAL,AIR DUCT/SECONDARY INLET | 1 | $2.19 | |
| 15 | 3606-481 | INTAKE,AIR-UPPER L/H VENT-MOLDED | 1 | $113.95 | |
| 16 | 5606-050 | FOIL,PROTECTIVE-TAB-INTAKE MTG-RH | 1 | $1.64 | |
| 16 | 5606-051 | FOIL,PROTECTIVE-TAB-INTAKE MTG-LH | 1 | $1.64 | |
| 17 | 5606-054 | SHIELD,HEAT-HEADLIGHT | 1 | $24.77 | |
| 18 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 |
