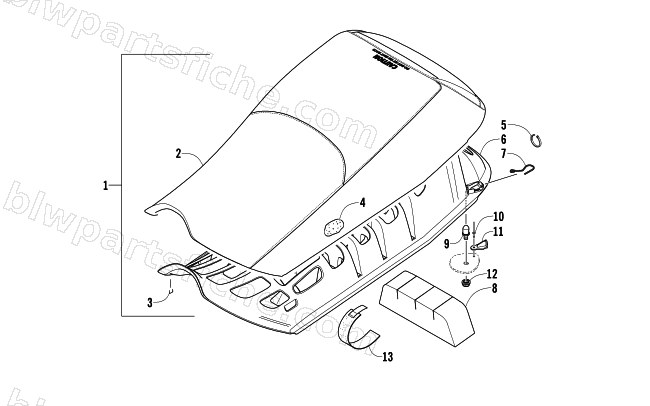

2008 Arctic Cat M1000 EFI 162 SNO PRO LIMITED EDITION — SEAT ASSEMBLY
2008 M1000 EFI 162 SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3706-731 | KIT,TOOL BAG-ASSY | 1 | $59.95 | |
| 1 | 7999-990 | SEAT,BLK (08 M-SERIES NF)-MFG ASSY | 1 | $605.95 | |
| 2 | 4706-152 | COVER,SEAT (08 M-SERIES NF)-BLK | 1 | $408.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 2706-647 | FOAM,SEAT CUSHION-MC(89-94 ILD).48@4.95 | 1 | $117.95 | |
| 5 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 6 | 4606-128 | SEATBASE-INJ MOLD | 1 | $142.95 | |
| 7 | 1623-393 | CLIP,RETAINING SPRING-SEAT | 1 | $6.95 | |
| 8 | 0617-512 | FOAM,COMPARTMENT-SEAT | 1 | $16.49 | |
| 9 | 1623-458 | STUD,LATCH-SEAT | 1 | $16.49 | |
| 10 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 11 | 4606-322 | COVER,LATCH-SEAT | 1 | $13.73 | |
| 12 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 13 | 3706-033 | RETAINER,TOOL KIT-VELCRO | 1 | $16.49 |
