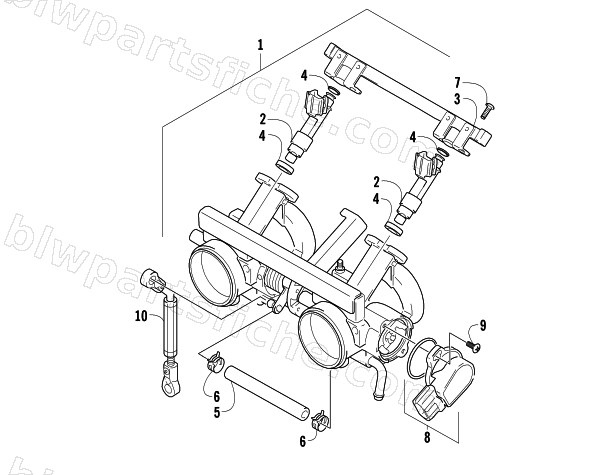

2008 Arctic Cat M1000 EFI 162 SNO PRO LIMITED EDITION — THROTTLE BODY ASSEMBLY
2008 M1000 EFI 162 SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-621 | BODY ASSY,THROTTLE | 1 | $2,882.95 | |
| 2 | 3007-288 | INJECTOR ASSY,FUEL | 1 | $644.95 | |
| 2 | 3007-721 | INJECTOR ASSY,FUEL | 1 | $647.95 | |
| 2 | 3007-290 | INJECTOR ASSY,FUEL | 1 | $647.95 | |
| 3 | 3007-291 | PIPE,FUEL DELIVERY | 1 | $477.95 | |
| 4 | 3005-692 | O-RING SET | 1 | $118.95 | |
| 5 | 3007-292 | HOSE | 1 | $56.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3007-443 | SCREW | 1 | $2.06 | |
| 8 | 3006-939 | THROTTLE POSITION SENSOR | 1 | $561.95 | |
| 9 | 3007-026 | SCREW | 1 | $2.47 | |
| 10 | 3007-365 | ROD,OIL PUMP CONTROL | 1 | $105.95 |
