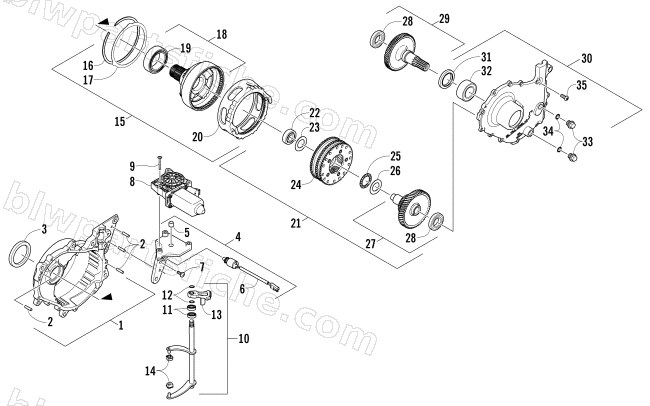

2008 Arctic Cat M8 EFI 153 SNO PRO LIMITED EDITION — GEARCASE ASSEMBLY
2008 M8 EFI 153 SNO PRO LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0702-955 | GEARCASE,REV-ACT-57T/63T 5P-M ASSY | 1 | $2,845.95 | |
| 0 | 4639-628 | ACT REVERSE GEARCASE FLUID 1-12 OZ | 1 | $17.95 | |
| 1 | 0702-951 | GEARCASE,REV-M-ASSY | 1 | $208.95 | |
| 2 | 1602-915 | PIN,DOWEL-M5 DIA X 14 | 1 | $2.47 | |
| 3 | 2602-172 | SEAL,OIL-HIGH COMP-50 X 65 X 8MM | 1 | $29.95 | |
| 4 | 0702-891 | BRKT,MTG-ACTUATOR-ASSY | 1 | $149.95 | |
| 5 | 1602-916 | BEARING,MB 0808 DU | 1 | $1.50 | |
| 6 | 0630-228 | SWITCH,ALARM-REVERSE | 1 | $109.95 | |
| 7 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 8 | 0630-283 | ACTUATOR,REVERSE-12VDC | 1 | $224.95 | |
| 9 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 10 | 1702-003 | FORK,SHIFT-11T(CAST)-ASSY | 1 | $124.95 | |
| 11 | 2602-013 | SEAL,OIL-SHIFT ROD 12X22X7 | 1 | $3.99 | |
| 12 | 2602-057 | RING, RETAINING, EXT-12MM | 1 | $0.95 | |
| 13 | 2602-007 | ARM,SHIFT FORK-11T-REVERSE (LONG) | 1 | $92.95 | |
| 14 | 2602-127 | BLOCK,SLIDER-SHIFT FORK | 1 | $4.26 | |
| 15 | 0702-910 | SLIDER,OUTER - ASSY | 1 | $838.95 | |
| 16 | 2602-040 | RING,RETAINING-136MM X 1.09MM | 1 | $17.87 | |
| 17 | 2602-064 | WASHER,THRUST-LOCK-116 X 131.5 X .9 | 1 | $13.73 | |
| 20 | 2602-063 | SLIDER, OUTER | 1 | $279.95 | |
| 21 | 1702-155 | GEAR,OUTPUT-63T/34T 5P-SPLINED-ASSY | 1 | $975.95 | |
| 22 | 2602-108 | BEARING,TRANSFER GEAR-17mm- PEER | 1 | $8.21 | |
| 23 | 2602-058 | WASHER,SPACER-.681X1.000X.040 | 1 | $2.75 | |
| 24 | 1702-130 | GEAR,OUTPUT-5P-ASSY | 1 | $713.95 | |
| 25 | 2602-317 | BEARING, THRUST 25X42MM (INA) | 1 | $12.35 | |
| 26 | 2602-316 | WASHER, THRUST 25X42X1MM (INA) | 1 | $3.44 | |
| 27 | 1702-156 | GEAR,TRANSFER-SPLINED ASSY 63T/34T | 1 | $275.95 | |
| 28 | 1602-981 | BEARING,25MMX47MMX8MM-PEER | 1 | $17.87 | |
| 29 | 0702-688 | SHAFT,INPUT-57T W/BEARING-ASSY | 1 | $174.95 | |
| 30 | 0702-953 | COVER,GEARCASE-M-ASSY | 1 | $300.95 | |
| 31 | 2602-160 | SEAL,OIL-PRE LUBE-2.099 X 1.311 X .315 | 1 | $23.39 | |
| 32 | 1602-982 | BEARING,SHAFT-INPUT-30MM-PEER | 1 | $34.95 | |
| 33 | 2602-099 | PLUG,FILL-12 MM | 1 | $13.73 | |
| 34 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 35 | 1623-683 | SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z&B | 1 | $1.23 |
